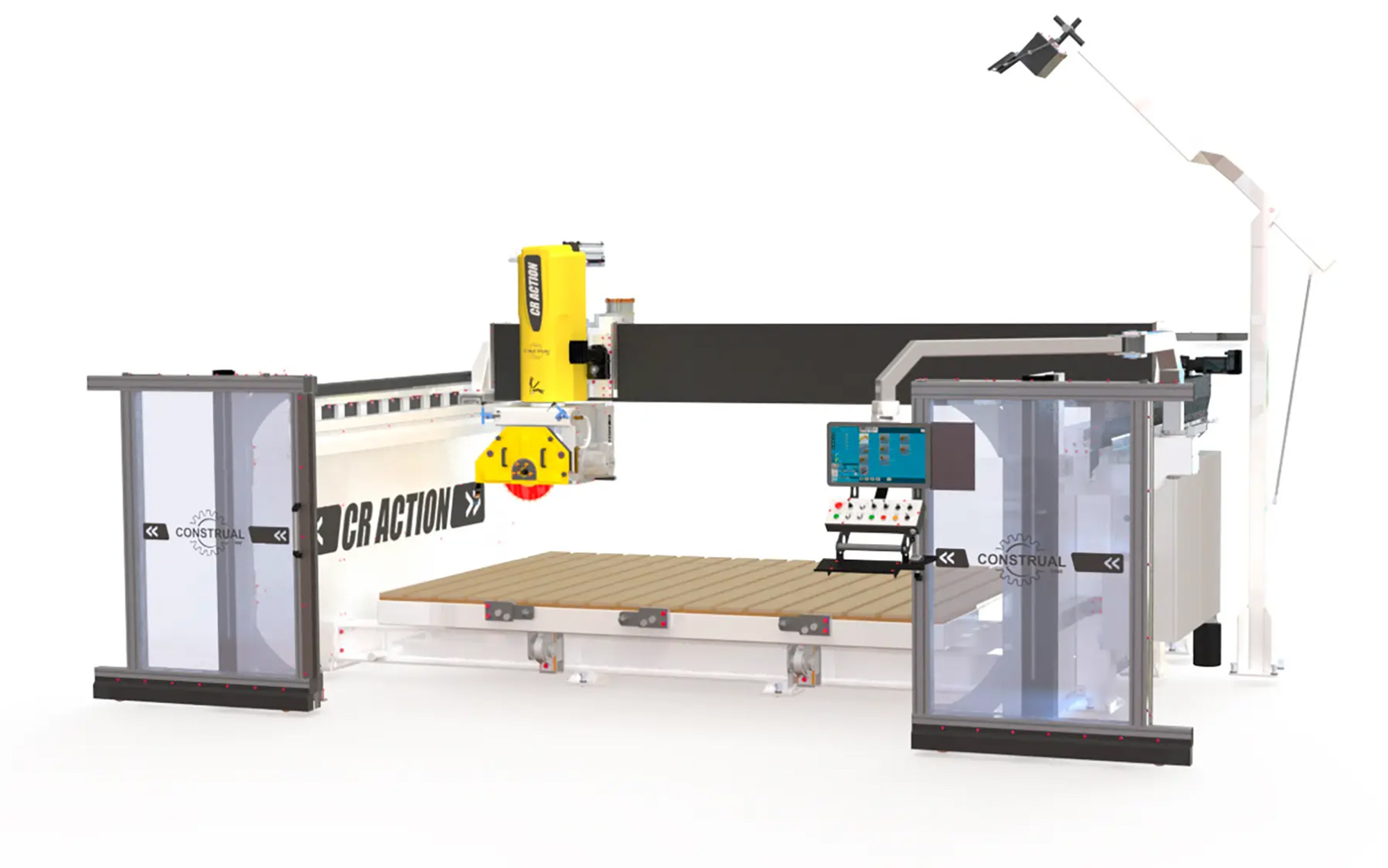

CONSTRUAL CR Action
CNC Bridge Saw
General Information

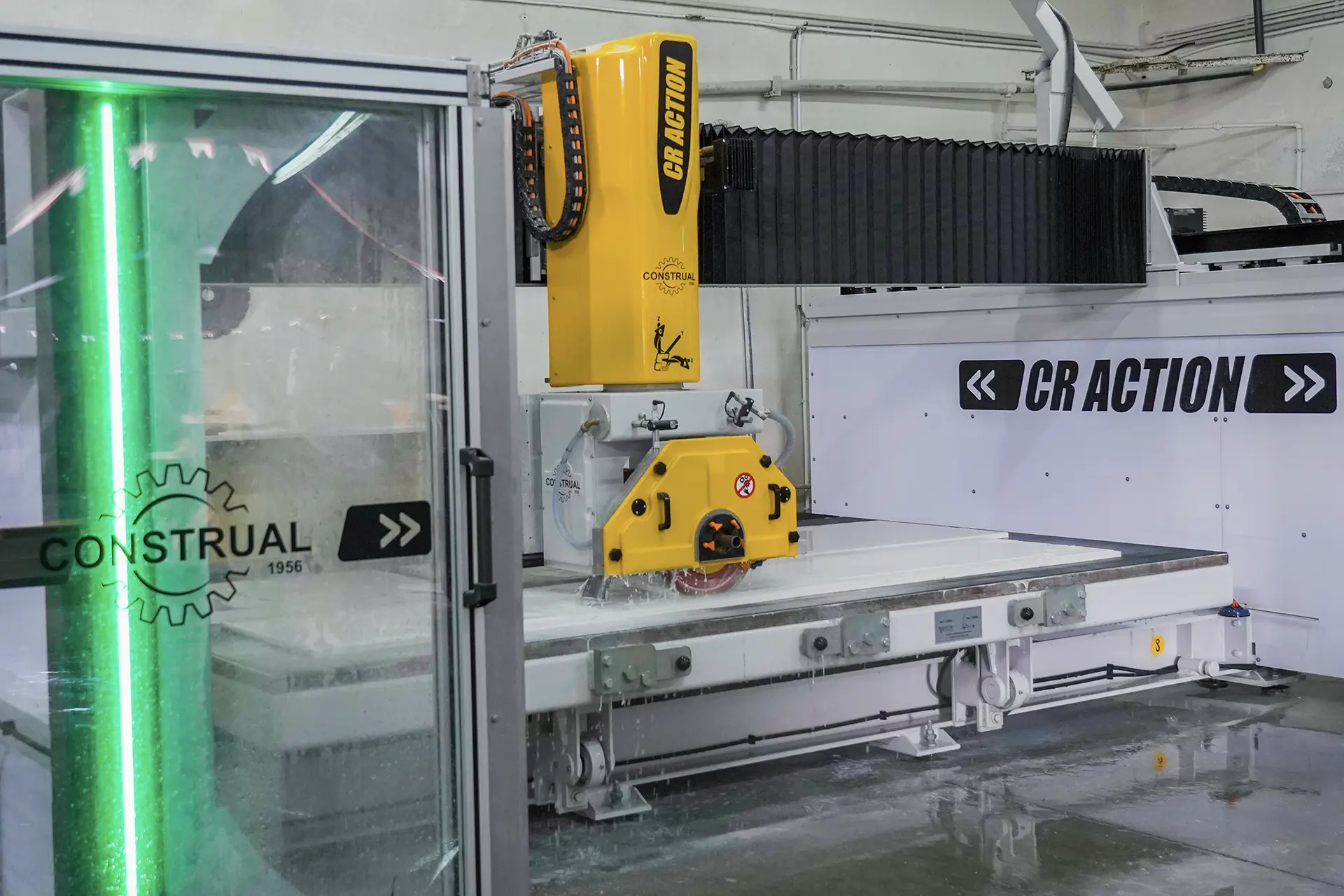

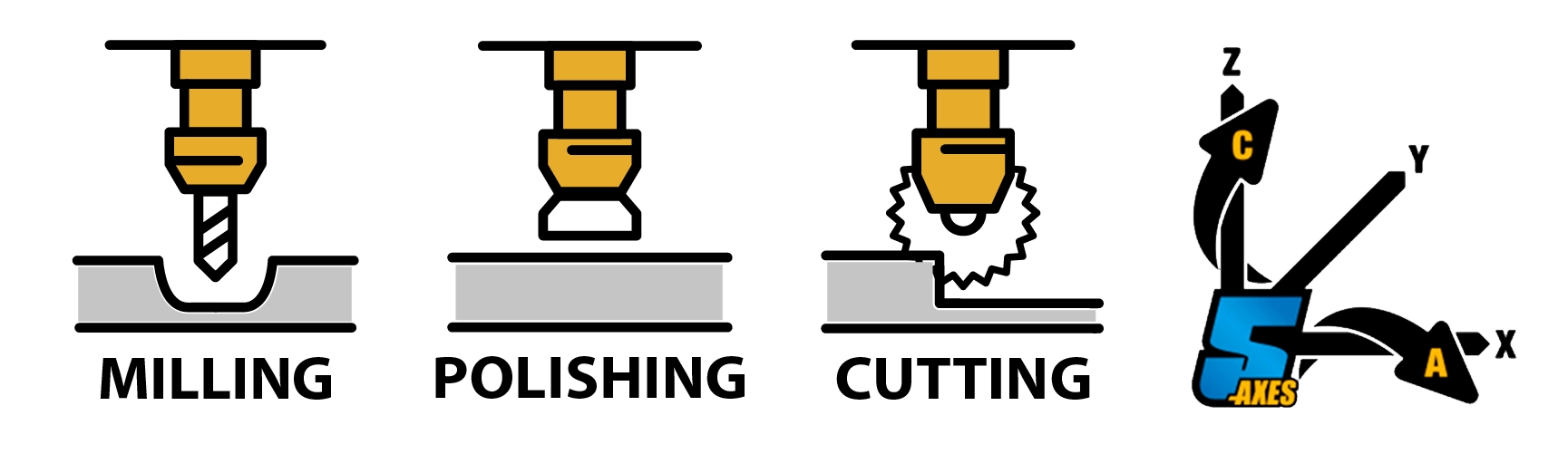

CNC Cutting and Milling Machine with Suction Cups
Designed for cutting and milling marble, granite, and similar materials, the CR Action is a robust, low-maintenance machine that ensures high precision and productivity. Equipped with DDX Easystone software and suction cups for moving pieces on the table, it offers intuitive handling and efficient programming. Compact and functional, it is ideal for demanding operations, combining flexibility with superior performance.
- Automatic blade probe measurement
- Automatic slab thickness probe measurement
- Automatic tilting table for smooth operation
- EasyStone software for programing jobs, as well as profiles, CNC tooling for sink cut outs, engraving, and many more options
- Machine includes, complete tilting table, laser cutting indicator, wireless remote control, and vacuum lifters
- Optional side spindle add on

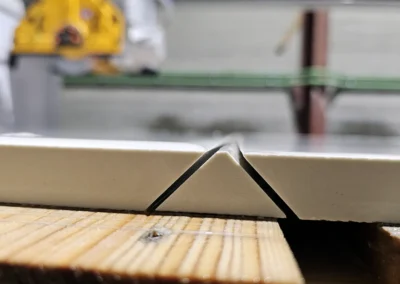

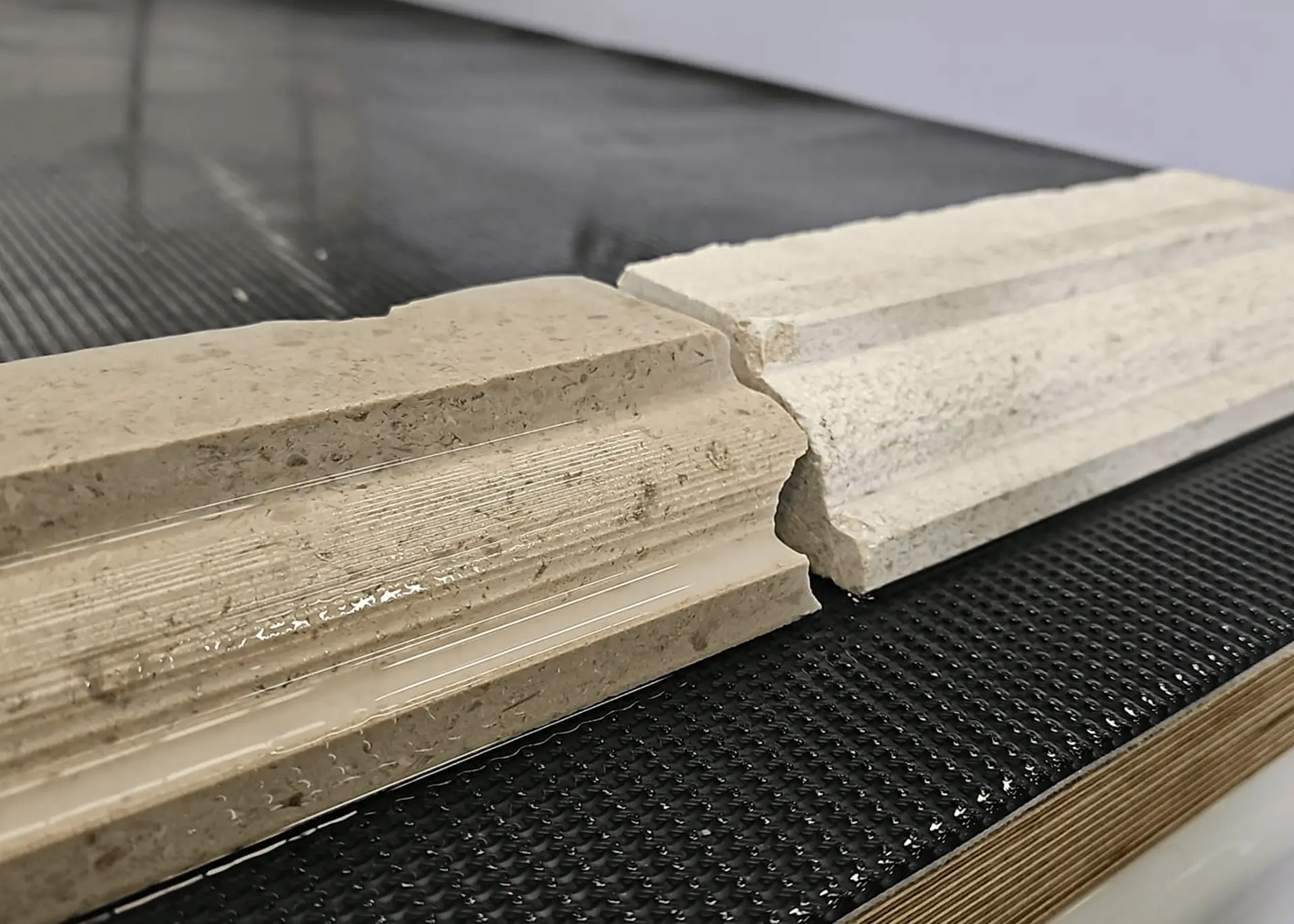

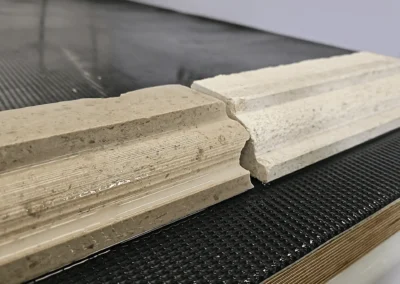

Gallery
Options
- Security Walls/Barriers
- Remote Control
- Rubber Coated Tilting Table
- Side Spindle
- Premium CAD/CAM Software
Includes
- Camera and Software
- Monoblock Structure
- Line and Cross Laser
- Automatic Tilting Table
- Doors Interlock
- Interactive LED System
- Internal Water Cooled Miling / Drilling System
- Slab Probin System
- Automatic Lubrication System
- Tools Probing System

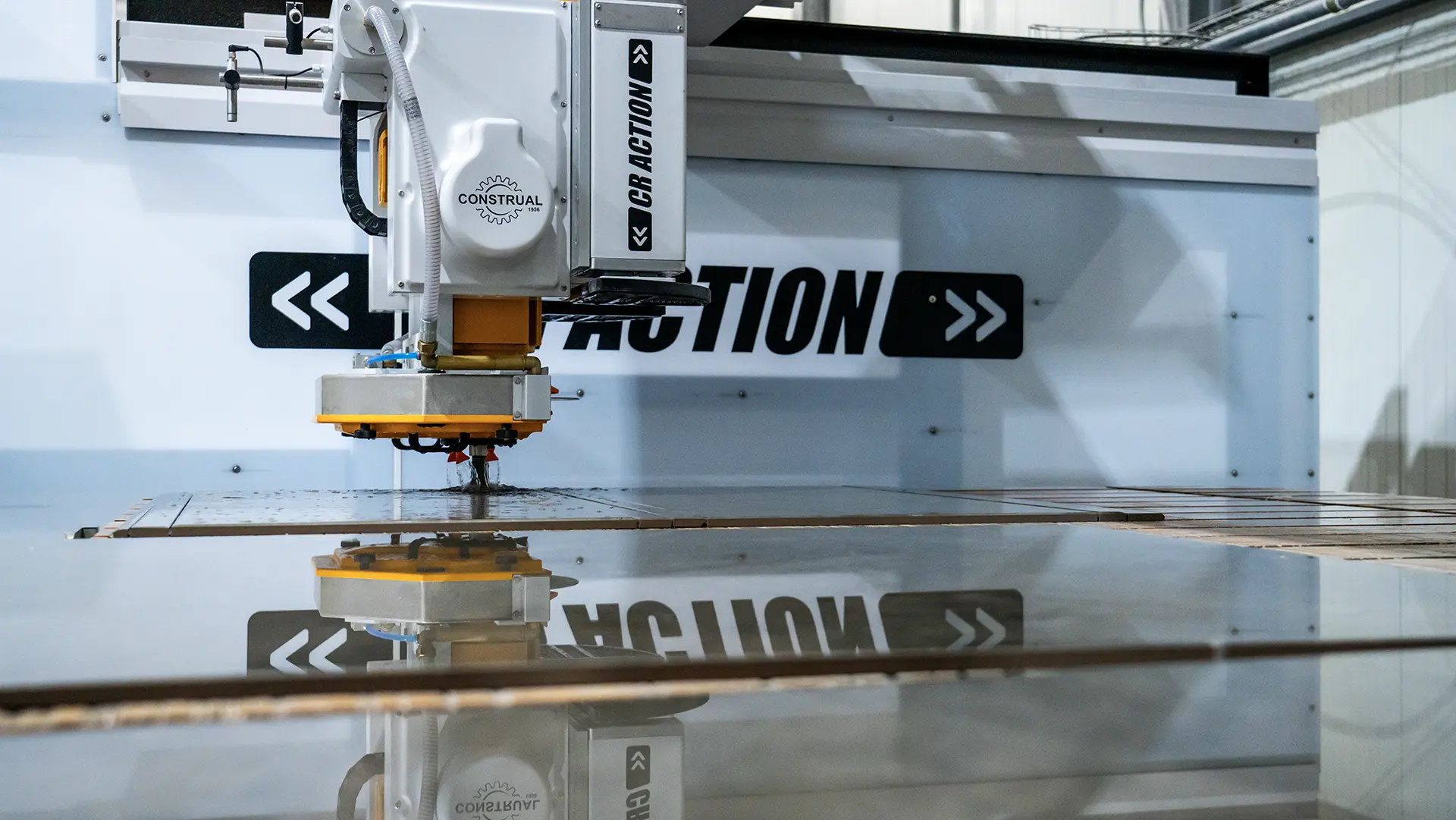

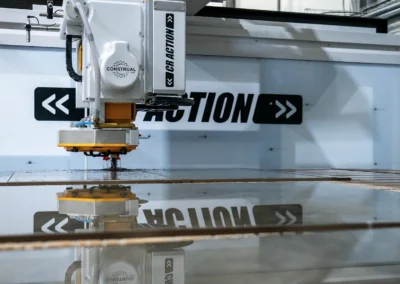

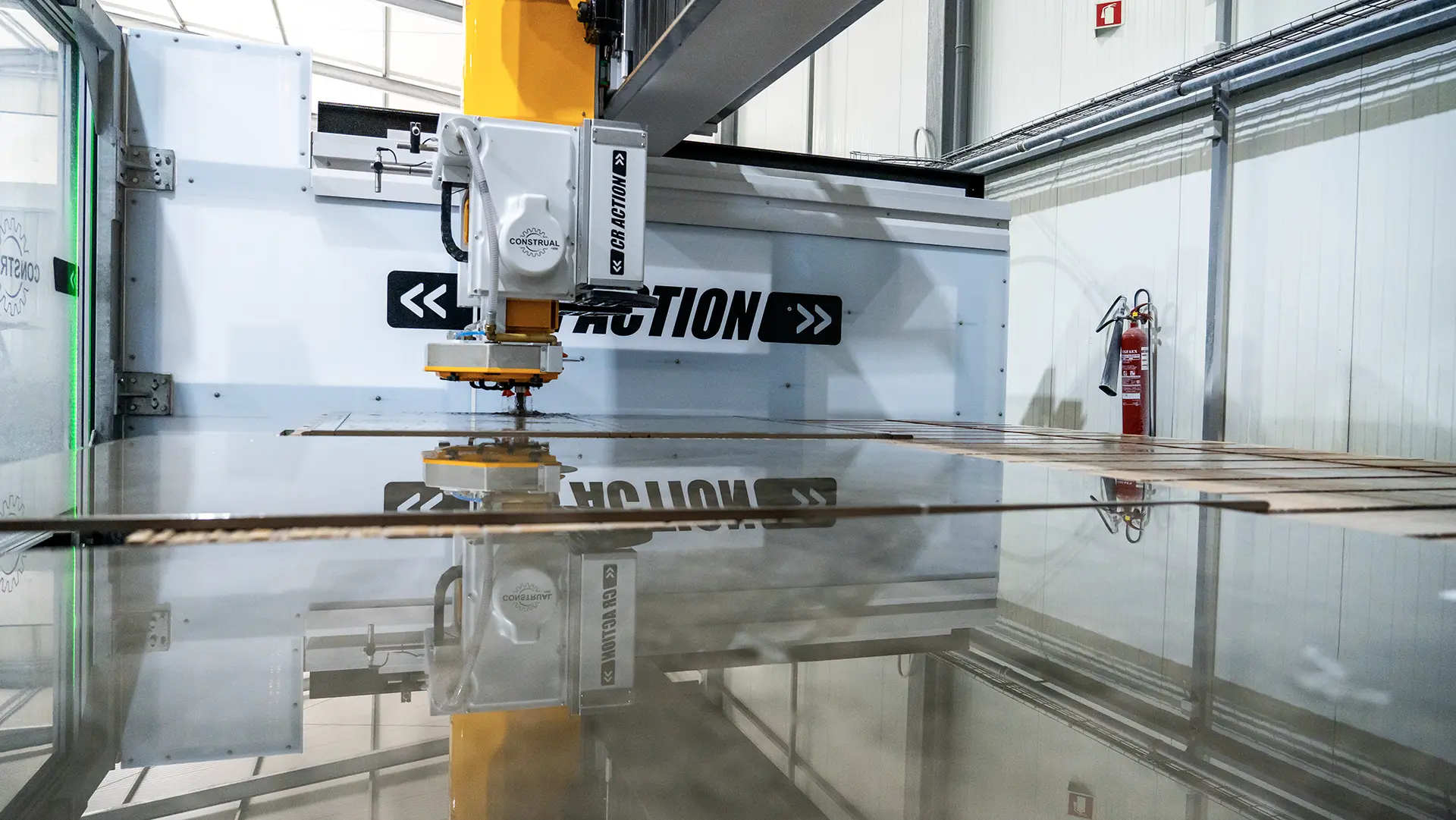

- Suction Cups
- Software CAD/CAM with Nesting
Technical Data
X Stroke
141 ½”
(3.600 mm)
Z Stroke
15 ½”
(385 mm)
A Tool Fitting
½ Gas
Weight
12,787 lbs
(5.800 kg)

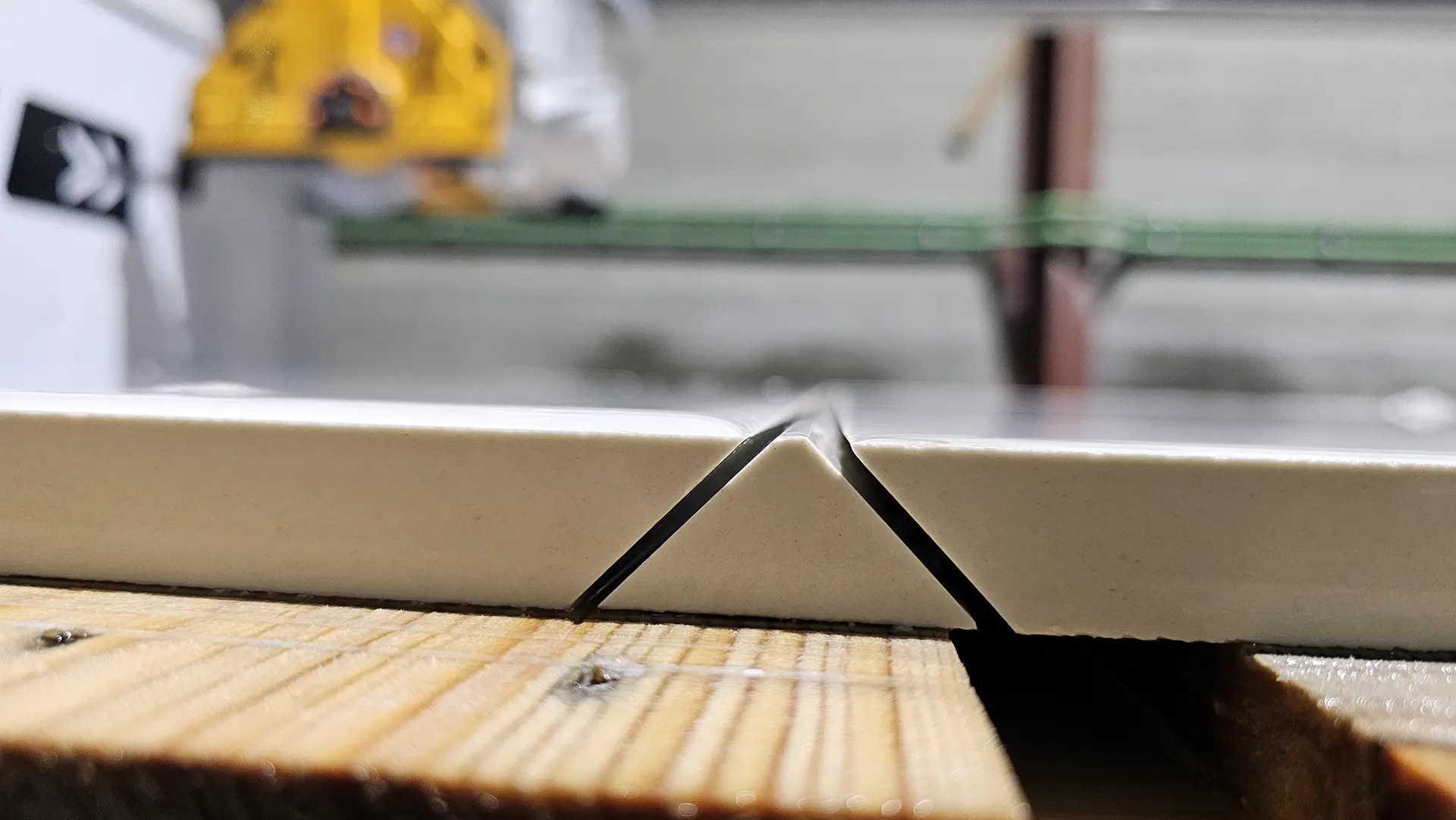

X 45º Cut
137 ¾”
(3.500 mm)
Z Max Speed
20 ft/min
(6m/min)
Motor Blade
14″-191/2″
(350-500 mm)
Air Pressure
6 bar
X Max Speed
164 ft/min
(50m/min)
C Stroke
1 ~ -361º
Motor Power
16.5 kw (S6)
Air Consumption
26.5 gal/min
(100 l/min)
Y Stroke
104 ½”
(2.650 mm)
C Max Speed
10 rpm
Motor Max Speed
6000 rpm
Max Weight
661.5 lbs
(300 kg)
Y 45º Cut
92.5″
(2.350 mm)
A Stroke
0º ~ 90º
Water Consumption
8 gal/min
(30 l/min)
Table Dimensions
141 ½” x 82 ¾”
(3.600 x 2100 mm)
Y Max Speed
164 ft/min
(50m/min)
A Max Speed
20 rpm
Water Pressure
2 bar
Fixed Table Dimensions
141 ½” x 82 ¾”
(3.600 x 2100 mm)
