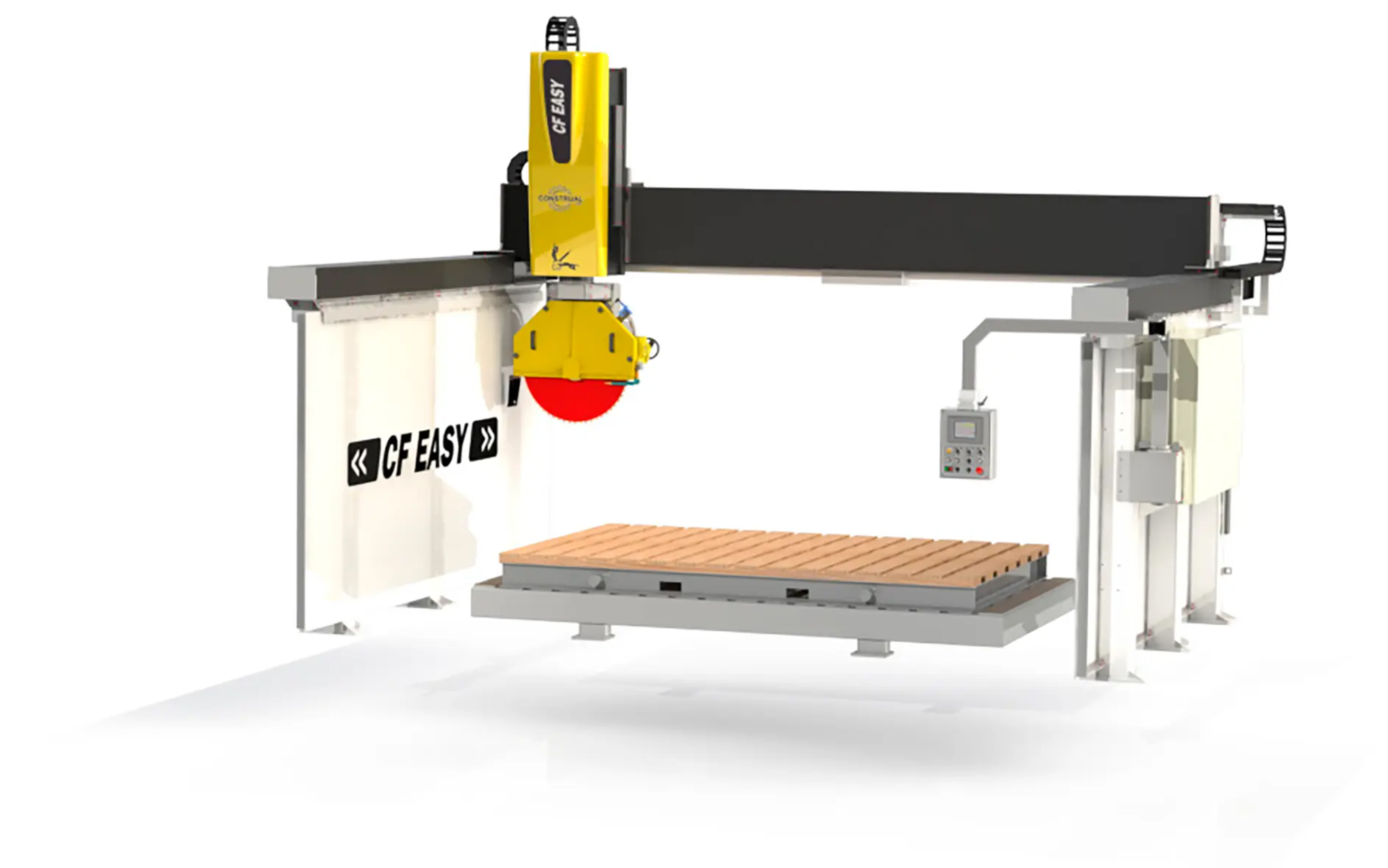

Construal CF EASY

Bridge Saw

CF EASY

General Information

4+1 Axes Cutting Machine

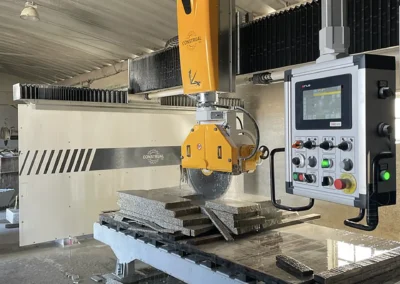

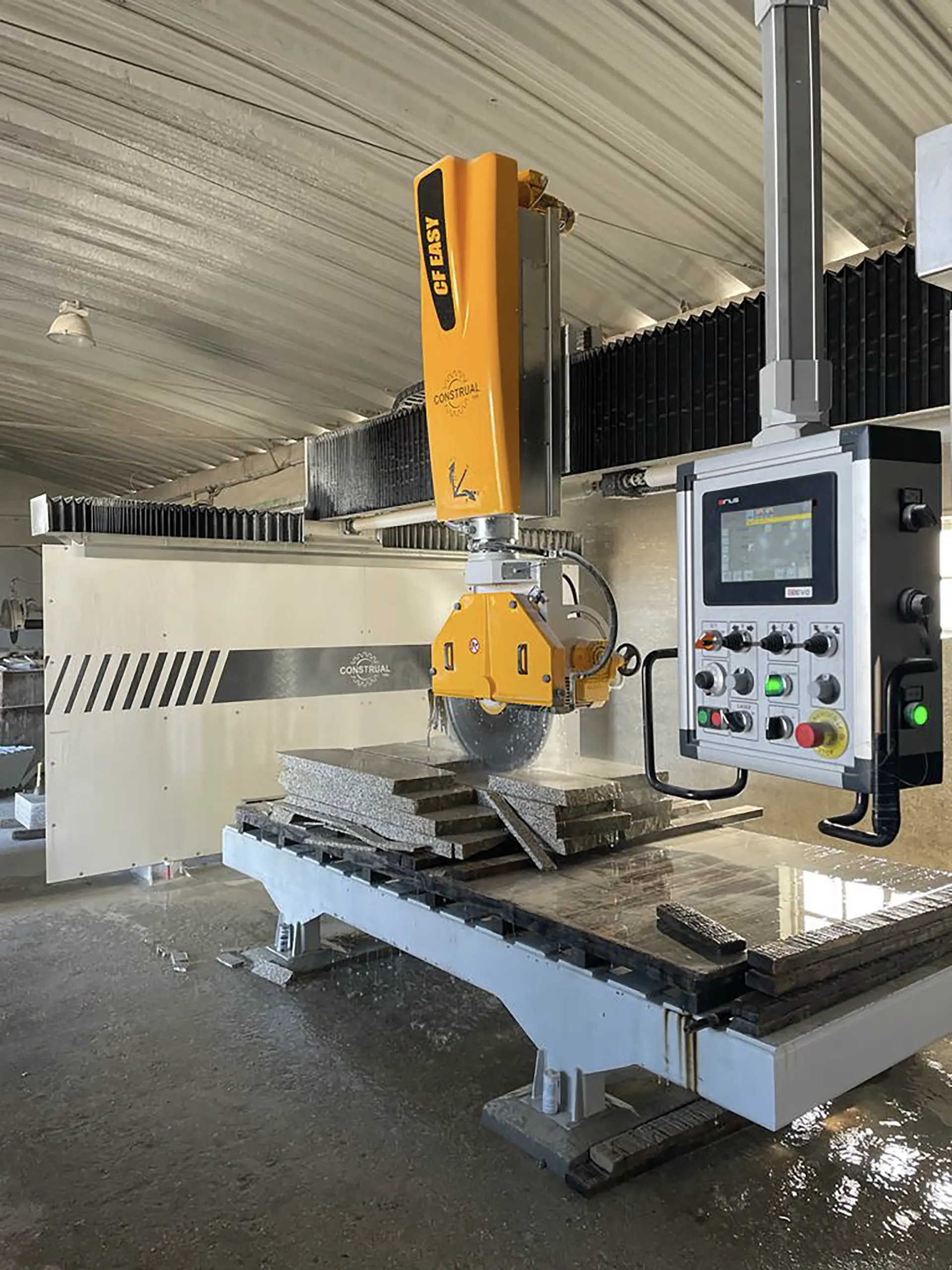

Designed for cutting marble, granite, and similar materials, CF Easy is a solid, low-maintenance machine that delivers high cutting quality and excellent performance. Controlled via an NC interface, it allows for easy handling and programming (supports DXF files). Compact and intuitive, it offers great flexibility in cutting with 3 interpolated linear axes, automatic disc rotation, and manual tilt from 0º to 90º.

Gallery

Includes

  • Security barriers
  • Remote control

Options

  • Blade ø 31.50’’
  • Tilting table

Technical Data

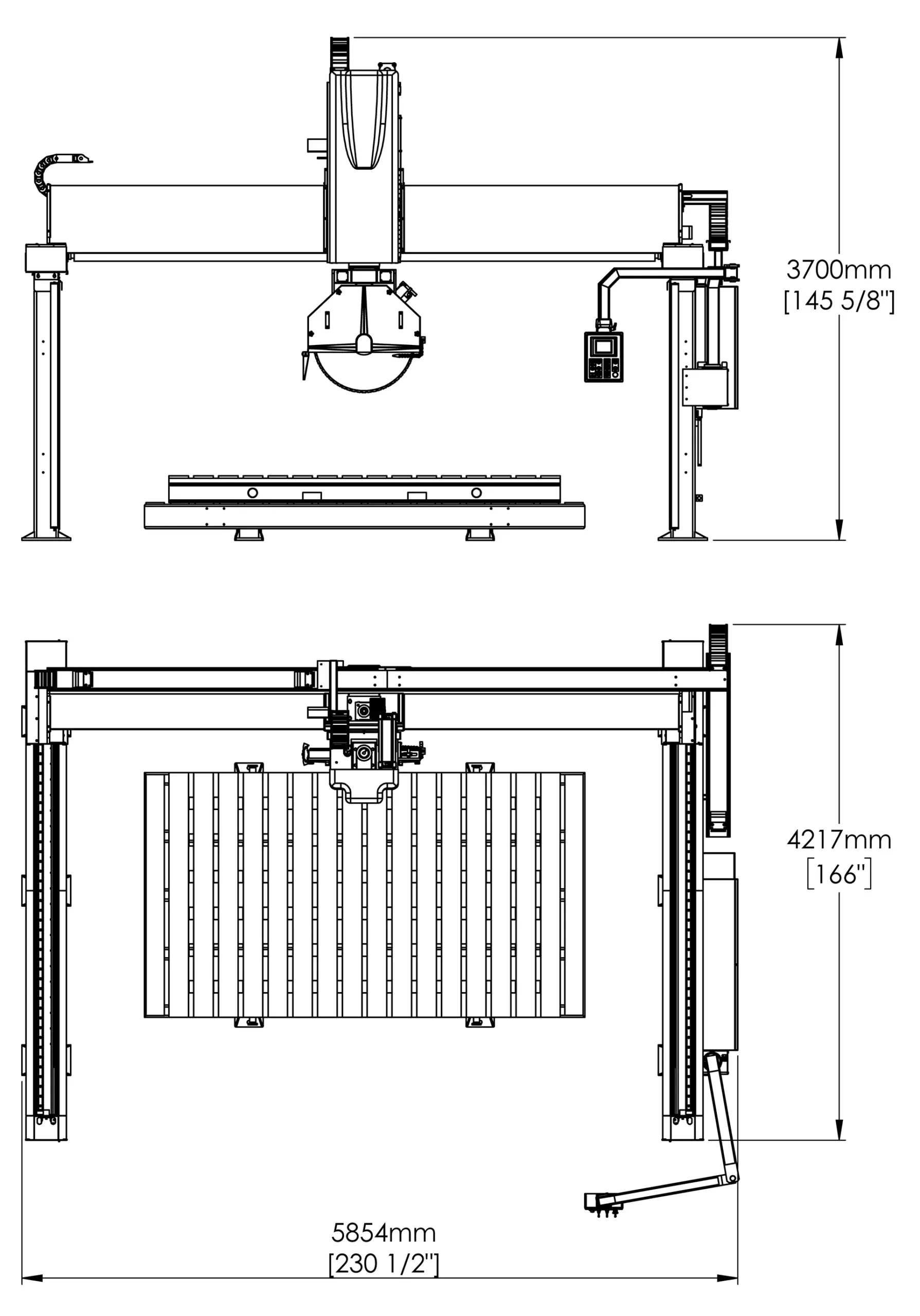

Approximate Dimensions

19′ x 16′ x 12′

A Axis Travel

0º to 90º (manual tilt)

Approximate Weight

9,920 lbs

X Axis Travel

148.23″

Y Axis Travel

116.14″

Z Axis Travel

23.62″

C Axis Travel

0º to -360º
