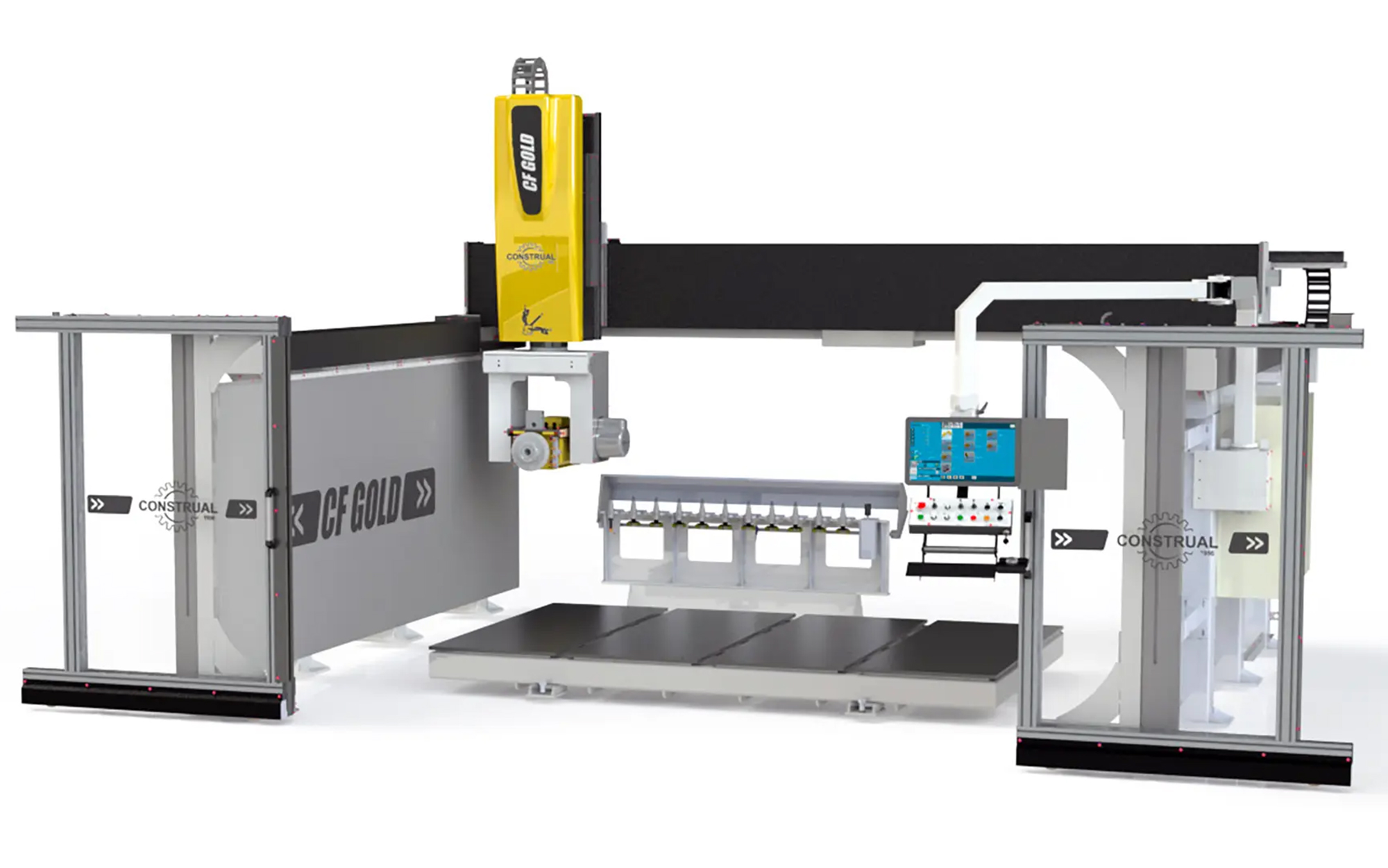

CONSTRUAL CF GOLD

CNC Bridge Saw

General Information

INNOVATION AND PRECISION

Designed for sawing and shaping marble, granite and similar the CF GOLD is a solid, low-maintenance machine, featuring high-quality cutting and high-performance levels.

Controlled by CNC in interface with Windows system, it allows easy handling and programming.

Compact and easy to use, it is very flexible thanks to its 5 axes and several tools.

Gallery

Technical Data

Approximate Weight

4,200 Kg

Y Axis Travel

2,250 mm

Y Axis Max. Speed

30 m/min

Water Consumption

30 l/min

Disc Diameter

350 mm – 625 mm

Table Dimension

3.200 x 2.000 mm

X Axis Travel

3,500 mm

X Axis Max. Speed

30 m/min

Water Pressure

3 bar

Motor Power

15 Kw

Z Axis Travel

450 mm

Z Axis Max. Speed

7.5m/min

C Axis Travel

0º – 360º

Max. Speed

6000 rpm

A Axis Travel

0º – 90º

A Axis Max. Speed

10 rpm

C Axis Max. Speed

10 rpm
