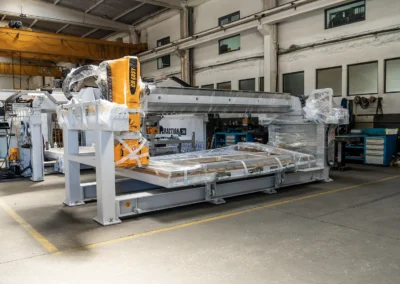

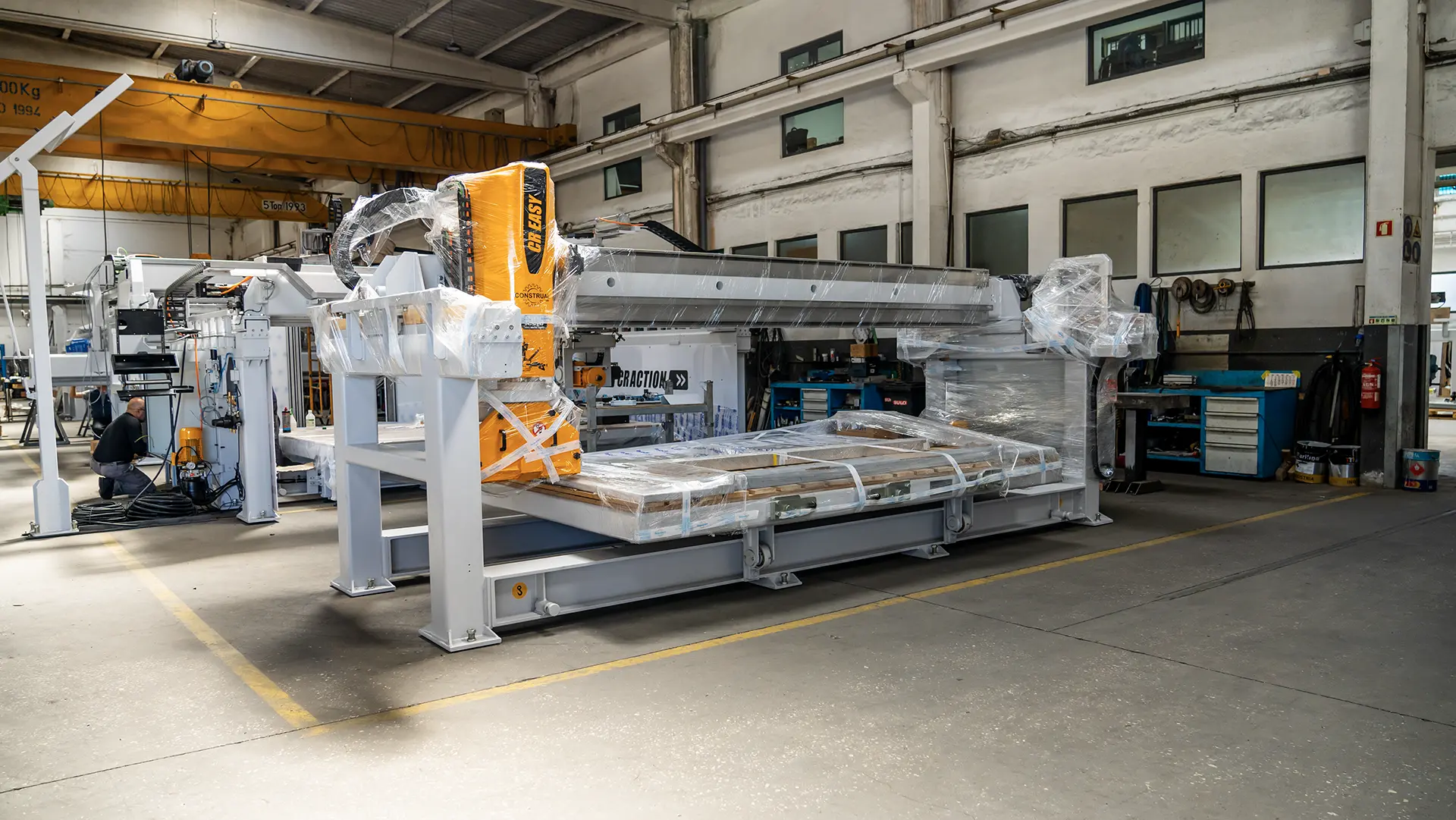

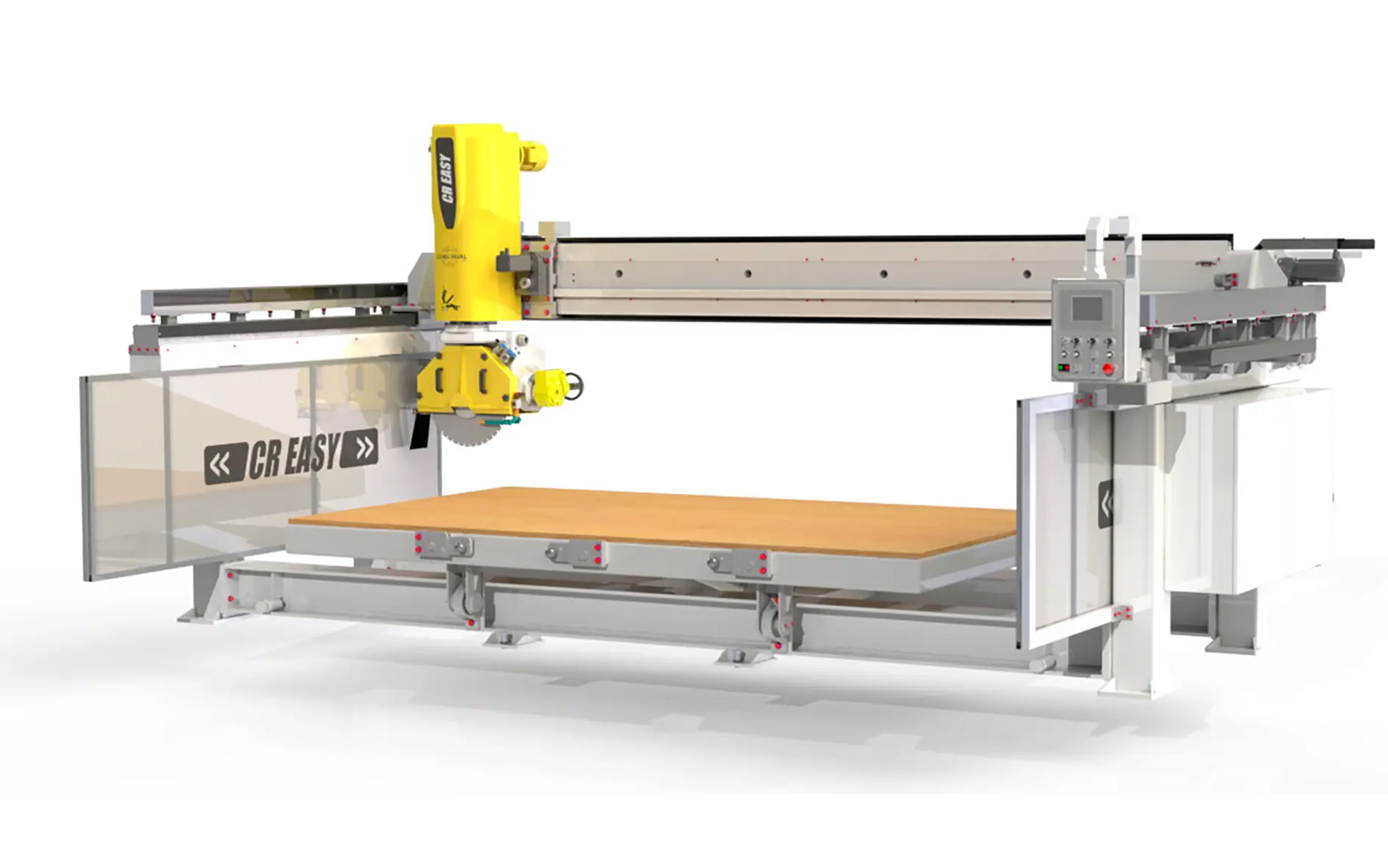

CONSTRUAL CR EASY

Bridge Saw

General Information

NO COMPLICATED CNC PROGRAM • READS DXF FILES

Easy and Compact

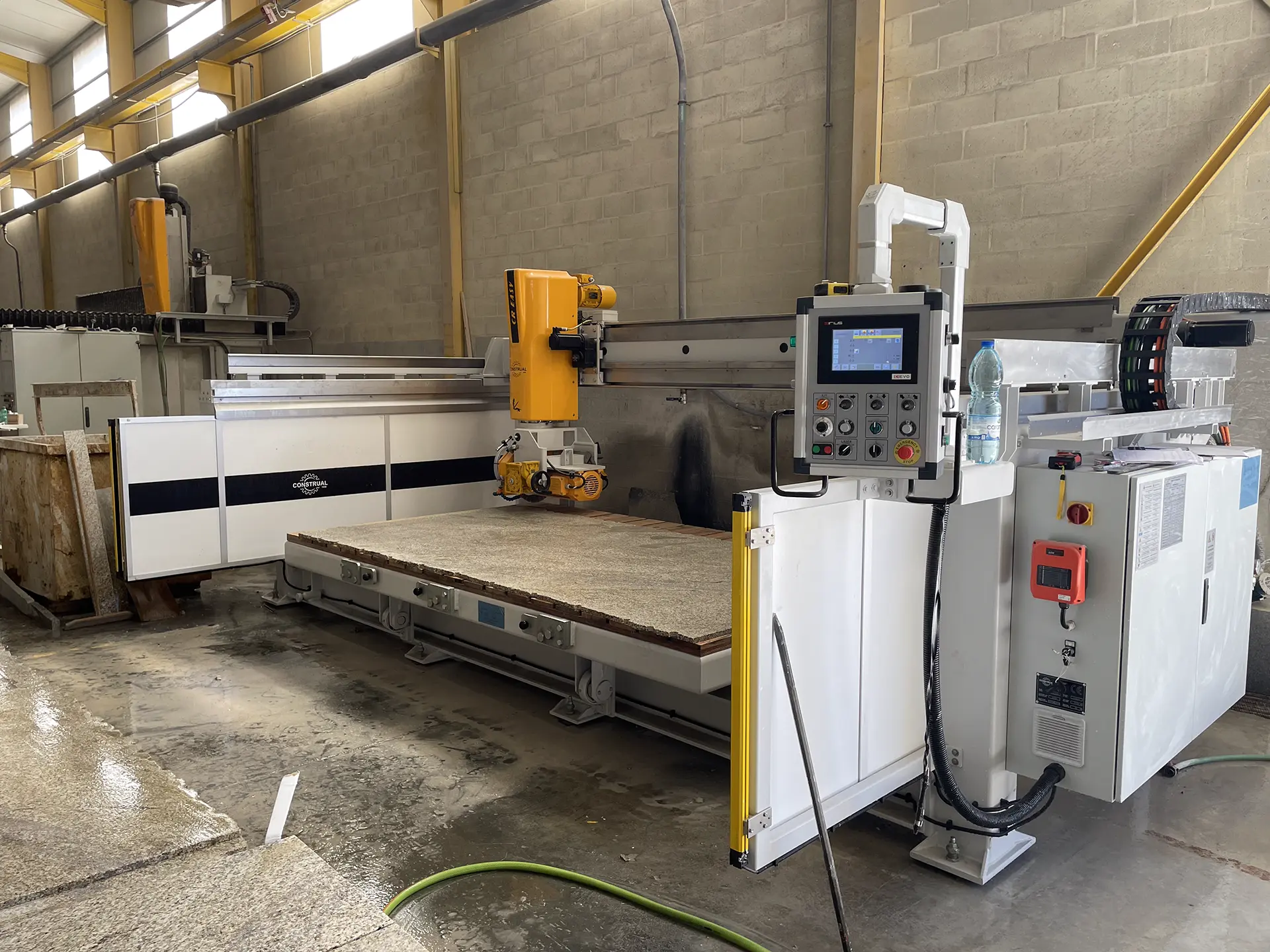

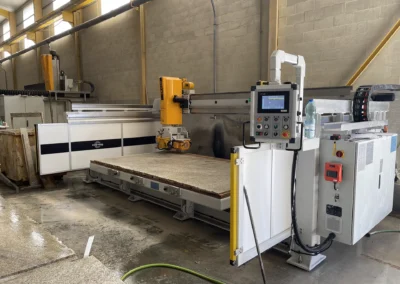

Designed for cutting marble, granite and similar stone, CR Easy is a solid, low maintenance machine, featuring high cutting quality and high-performance levels. Controlled by an NC interface it allows easy handling and programming. Compact and easy to use, it is very flexible with 3 linear axes (interpolated) and has a rotary head with manual tilting from 0º to 45º.

  • Machine includes complete tilting table, laser cutting indicator and wireless remote control.



Features

X AXIS TRAVEL

The transverse motion is created with a gear motor with a pinion rack system along two linear guides.

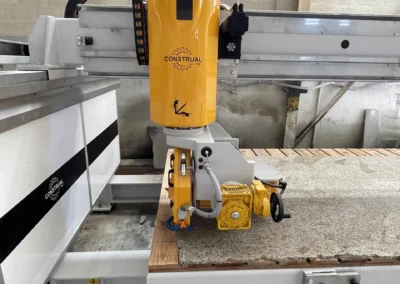

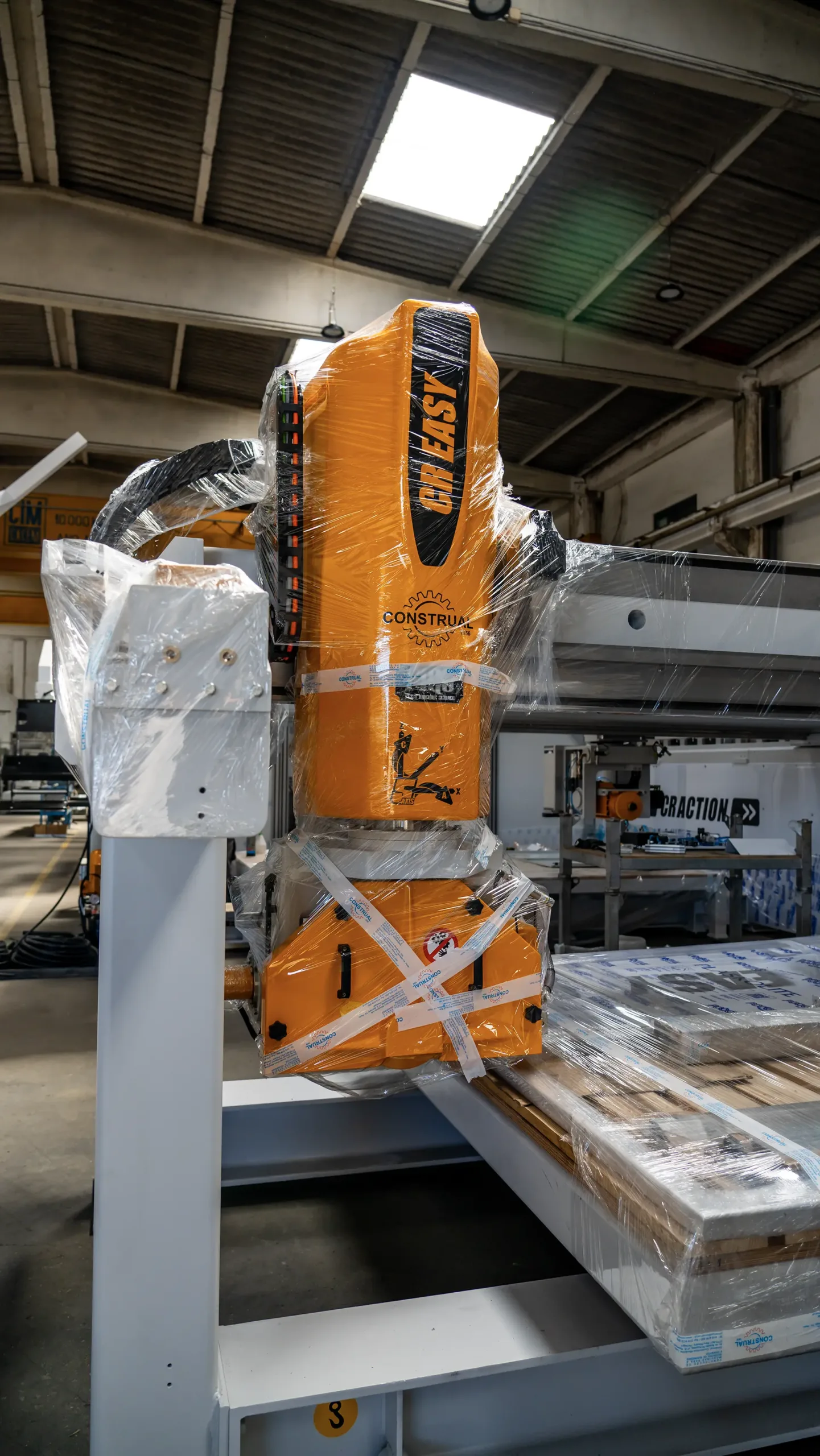

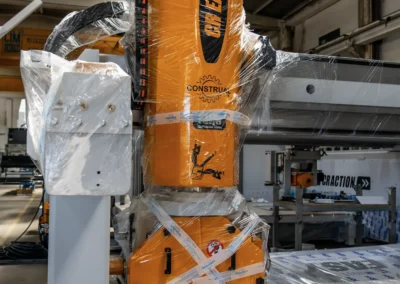

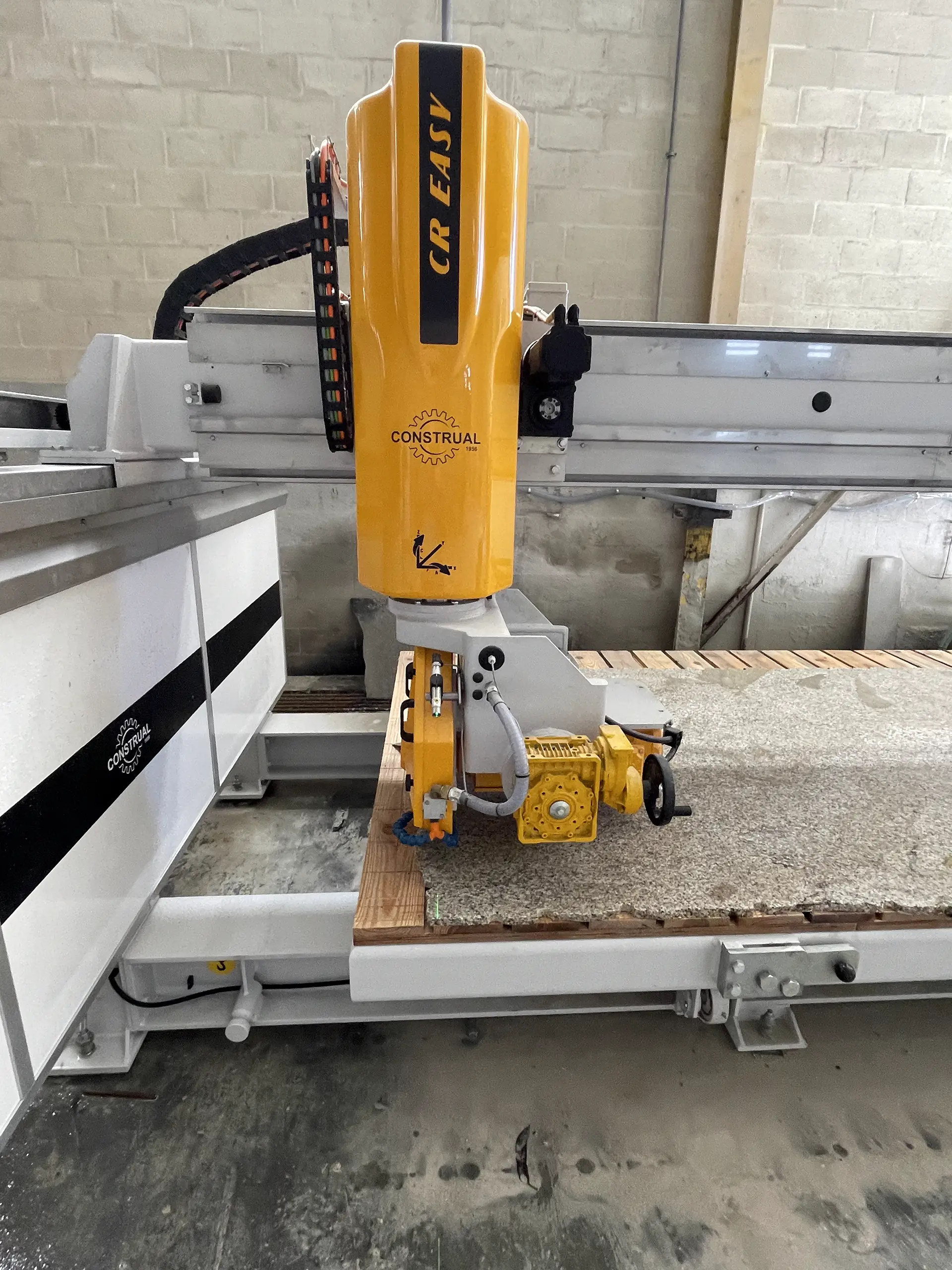

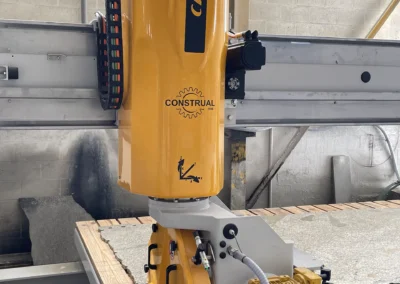

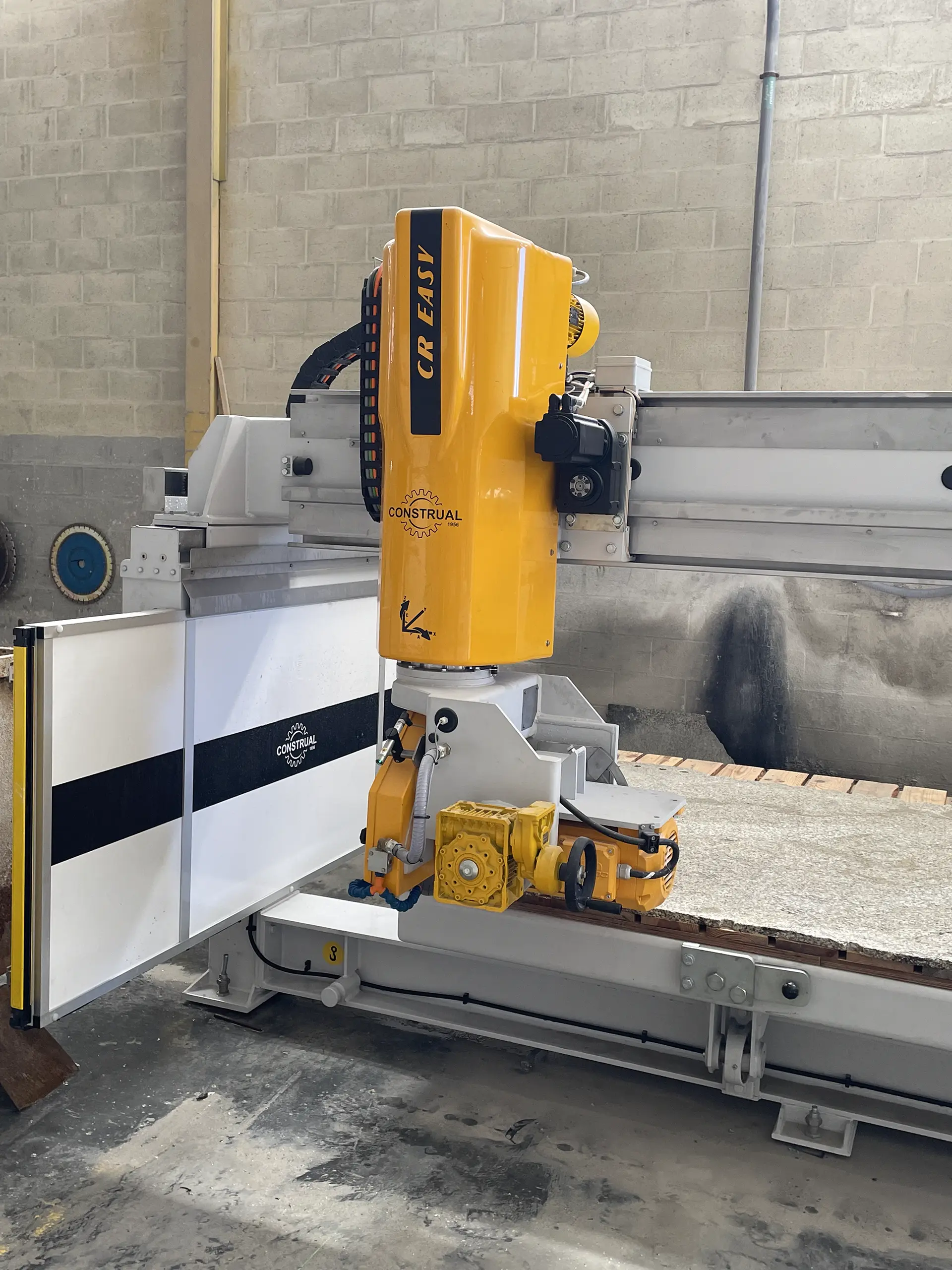

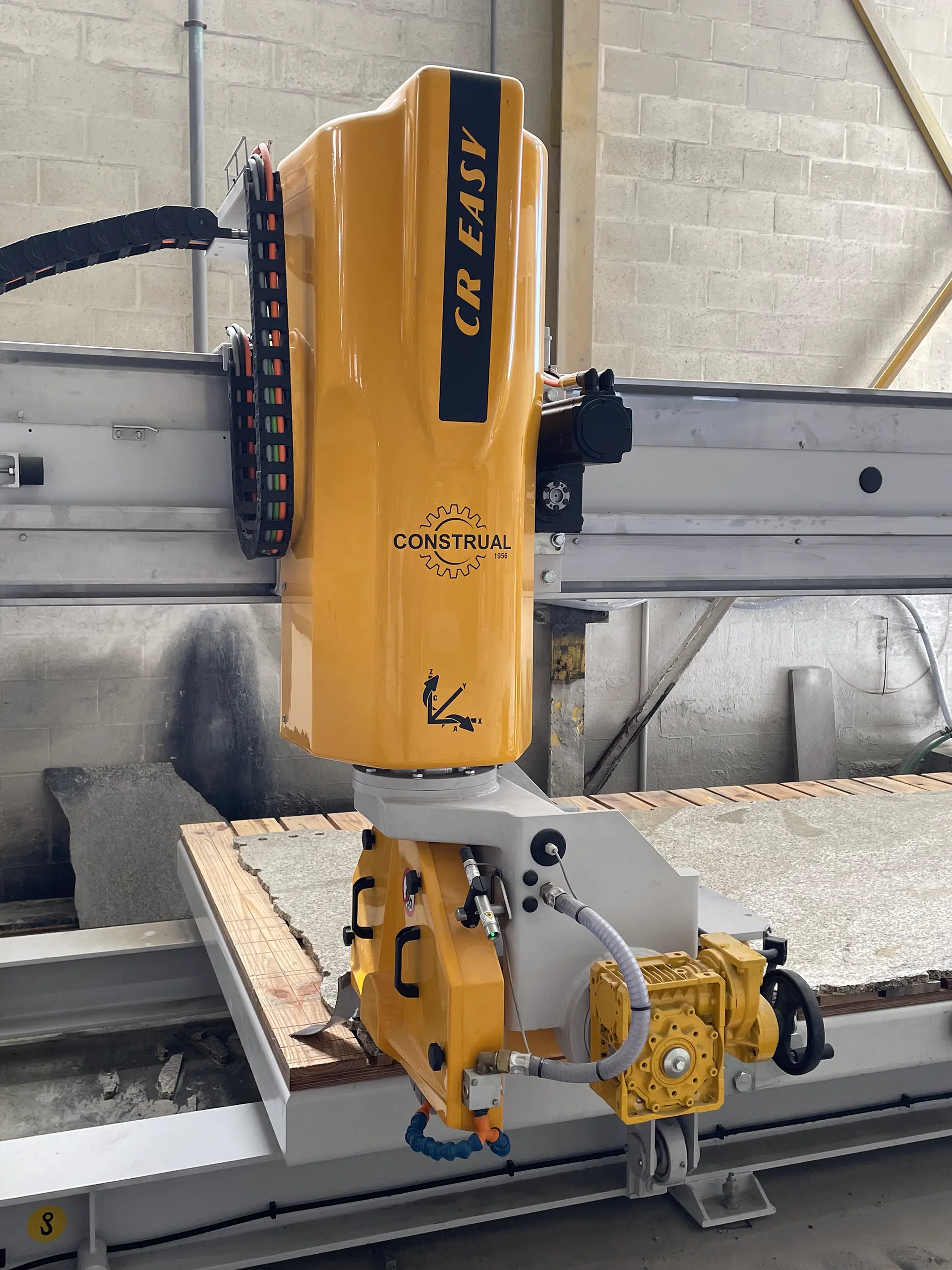

THE HEAD

The head spins 360º. The movement is carried by a servomotor and gear motor shaft.

Y AXIS TRAVEL

The longitudinal motion is carried out along two linear guides through a servomotor and a gear motor shaft and a pinion rack system. The bridge travels on linear guides plated with oil balls, mounted on a tubular structure that guarantee good precision and high longevity.



Z AXIS TRAVEL

The vertical movement is ensured by a motor with brake and spindle coupled to a lead screw and nut system, driven by two linear guides.

THE TABLE

Fixed tilting table.

Technical Data

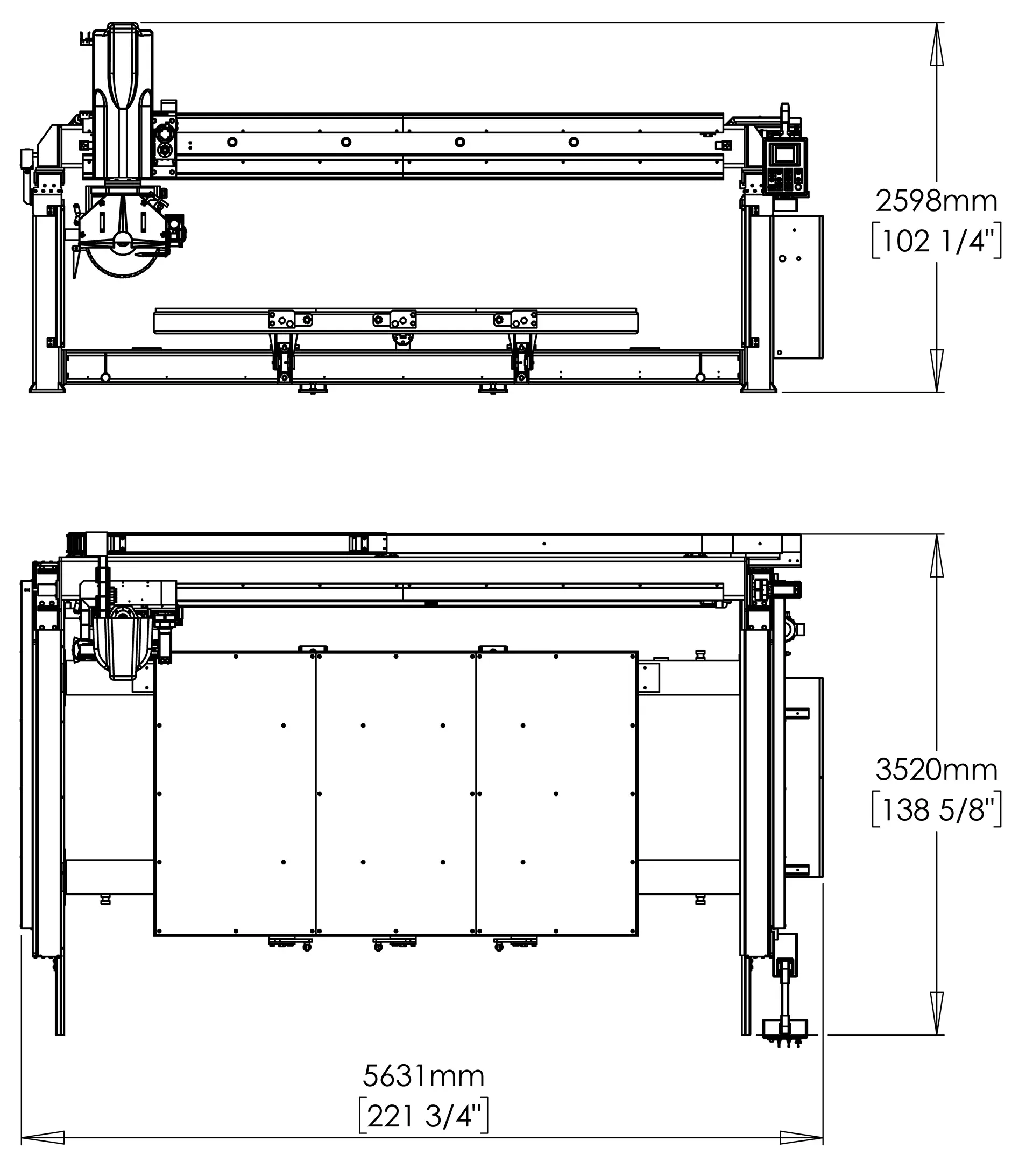

Approximate Dimensions

18.4′ x 8.9′ x 9.2′

Approximate Weight

9,259 lbs

Y Axis Travel

71″ / 78.5″

Y Axis Max. Speed

20 m/min

Disc Diameter

14″ – 20″

Table Dimension

126″ x 71″

X Axis Travel

138″

X Axis Max. Speed

20 m/min

Motor Power

18 Hp

Max. Speed

2800 rpm

Z Axis Travel

12″

Z Axis Max. Speed

10 rpm

Water Consumption

30 l/min

Water Pressure

4 bar
