Construal cr gold

CNC Bridge Saw

CR Gold

General Information

CNC Cutting and Milling Machine

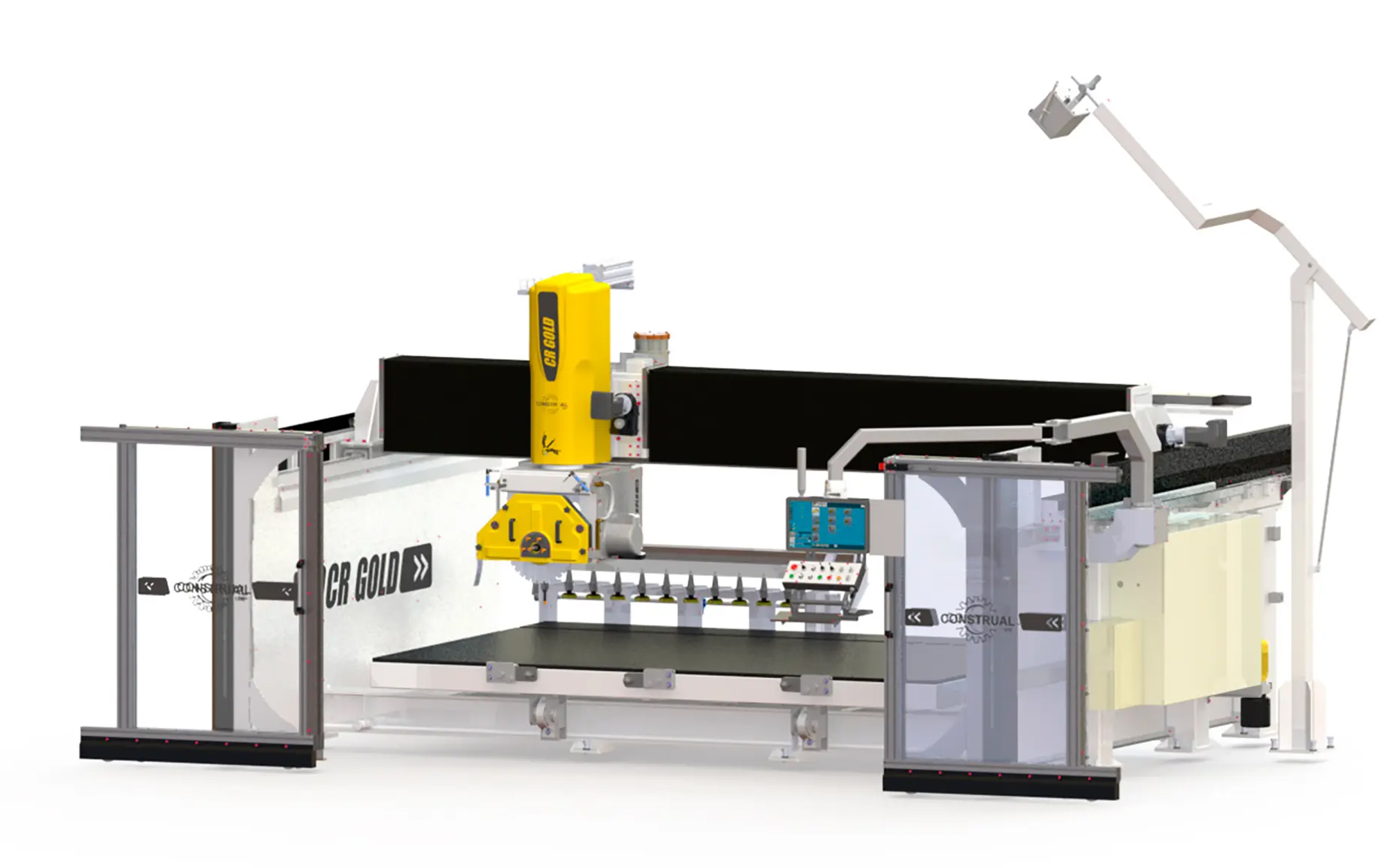

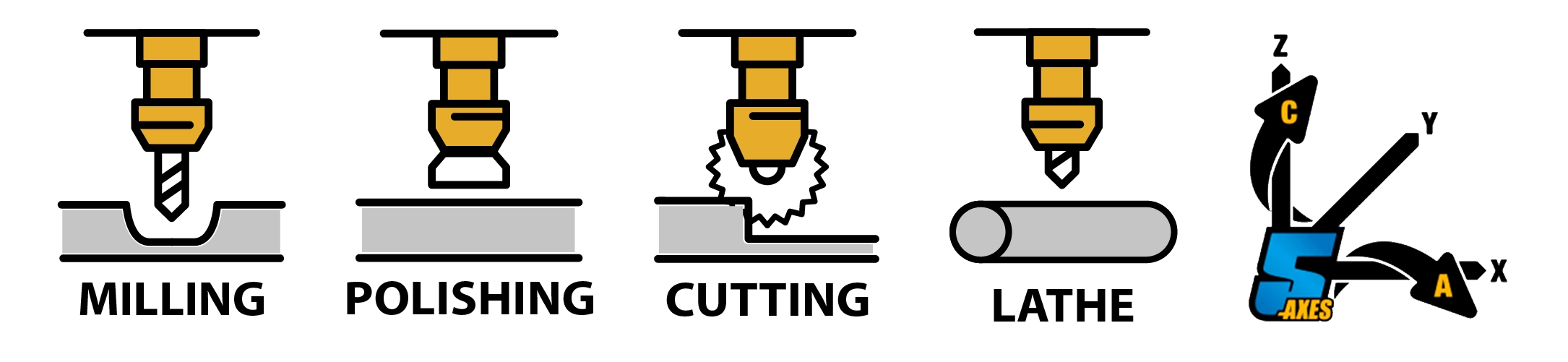

Designed for cutting, milling, and polishing marble, granite, and similar materials, the CR Gold is a solid, low-maintenance machine that delivers high cutting quality and excellent performance, combined with an automatic tool change system. Controlled via CNC with a Windows-based interface, it offers easy handling and programming. Compact and efficient, it maintains the versatility and flexibility provided by its 5-axis configuration.

Gallery

Includes

  • 12-position linear tool storage
  • Vacuum pump and suction cups
  • Camera and software
  • Remote control
  • Remote diagnostics and technical support
  • 21.5″ Touchscreen
  • Monoblock structure
  • Line and cross laser
  • Aluminum table
  • Doors interlock
  • Interactive LED system
  • Automatic lubrication system
  • Cooled drilling system (internal and external)
  • Slab thickness and tools probing system
  • Software (DDX Easystone Premium Level)

Options

  • 24 position linear tool storage
  • Wood coated platform
  • Tool kit

Technical Data

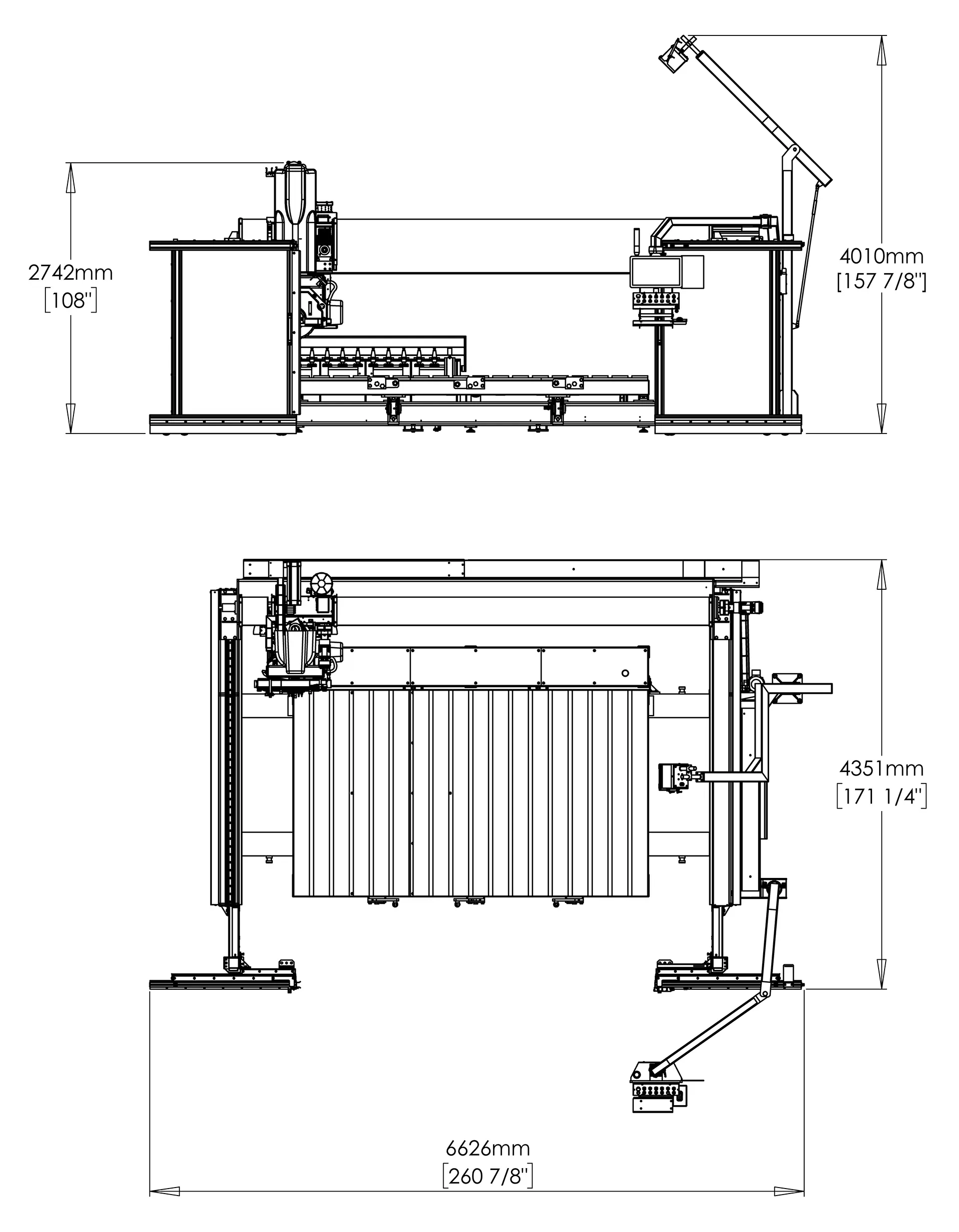

Approximate Dimensions

22′ x 15′ x 10′

A Axis Travel

0º to 90º

Approximate Weight

14,109 lbs

X Axis Travel

141.73″

Y Axis Travel

102.36″

Z Axis Travel

17.32″

C Axis Travel

90° to -361°
