Construal FA Star
CNC Polishing & Milling Machine

General Information
CNC Polishing and Milling Machine

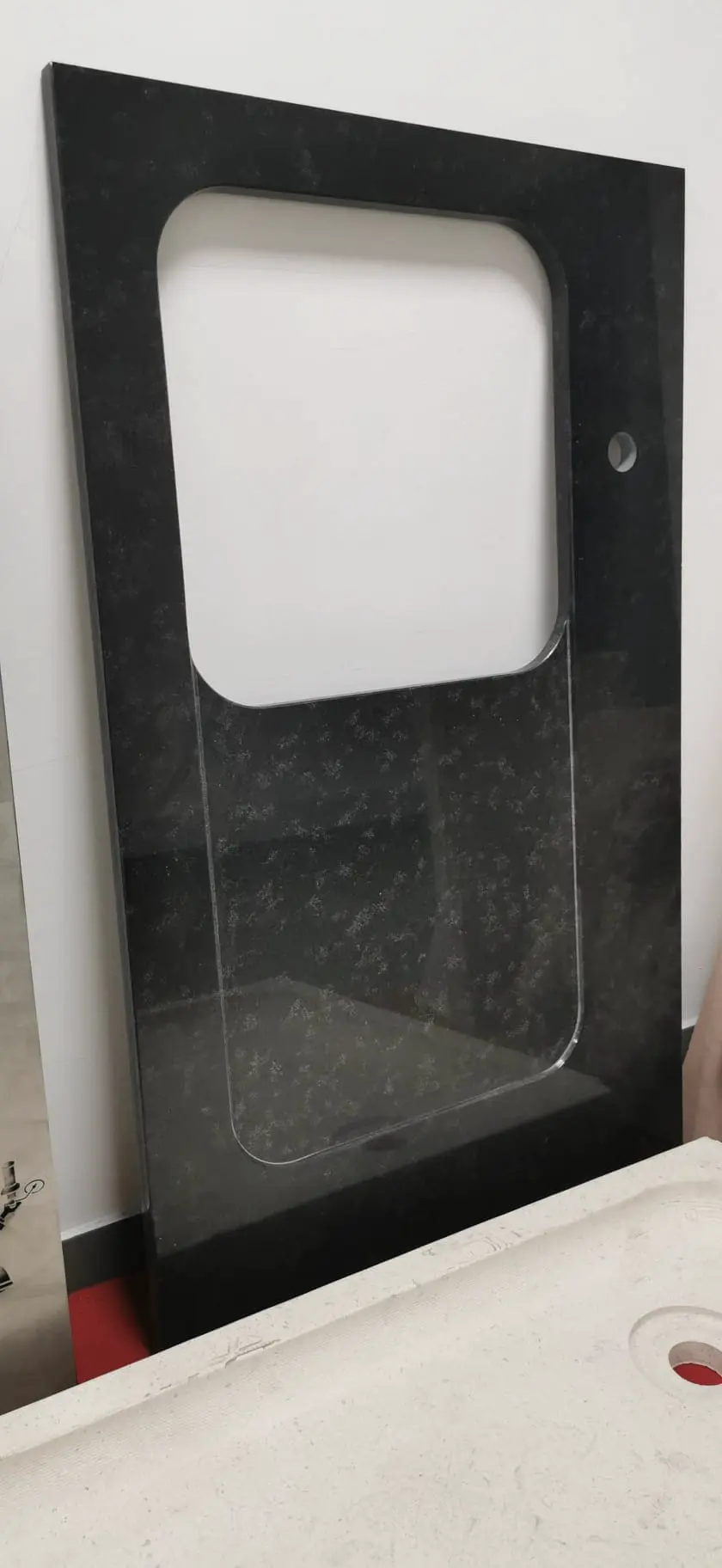

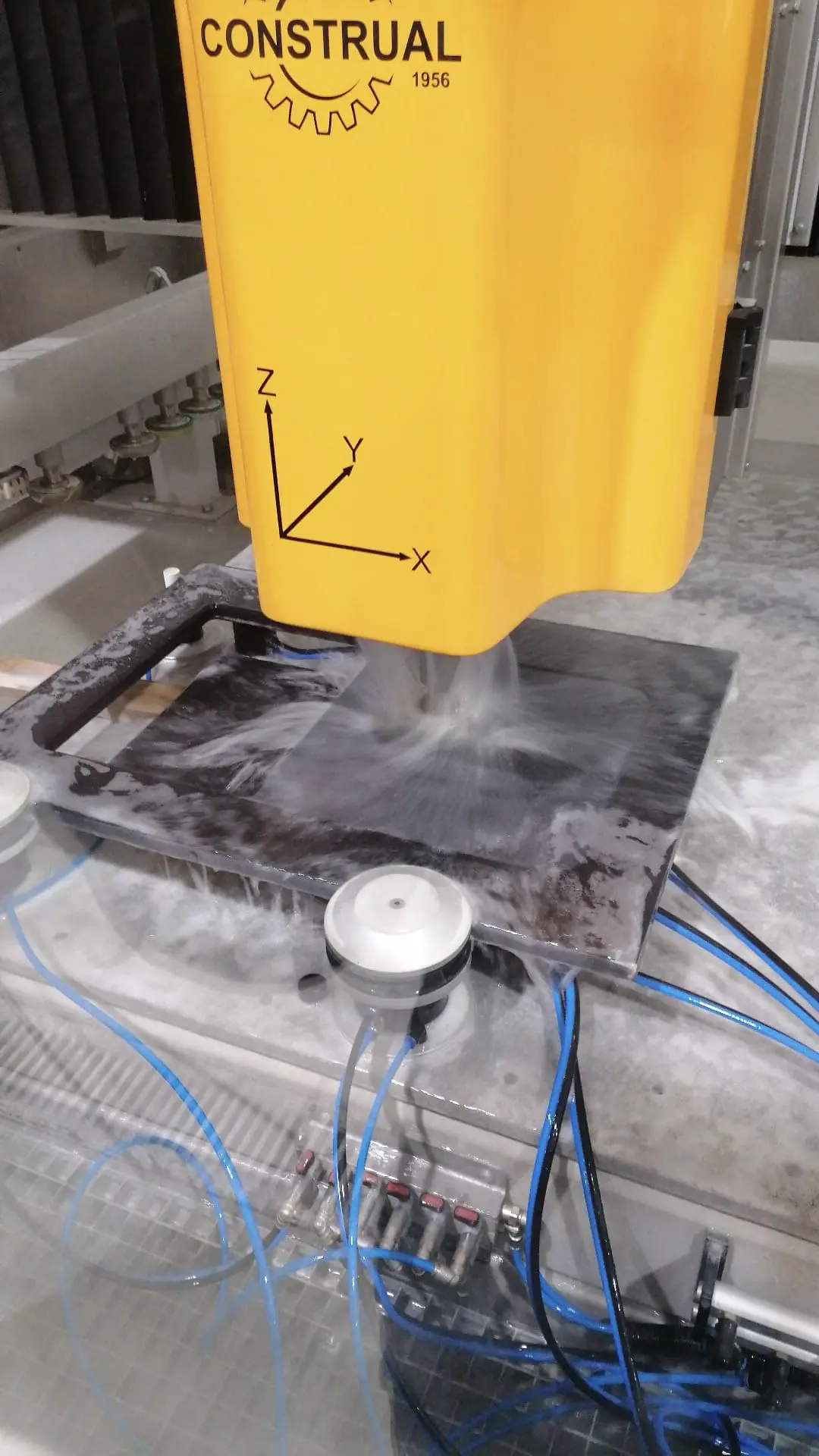

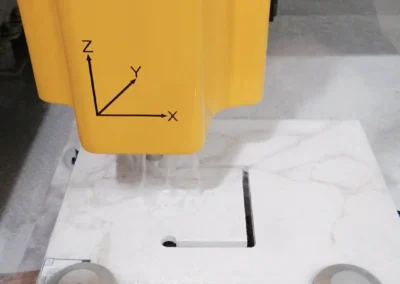

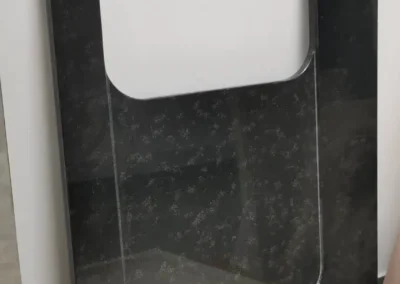

Designed for milling marble, granite, and similar materials, the FA Star is a solid, low-maintenance machine that offers high precision and excellent performance. It allows for the polishing of recesses and sink cutouts. Controlled by CNC with a Windows-based interface, it enables easy operation and programming. Compact and intuitive, it offers great flexibility with 3-axis interpolation, tilting capability, and automatic tool change.

Includes
- 24 ISO 40 Tool holders
- 2×15 position linear tool storage
- Remote control
- Remote diagnostics and technical support
- Vacuum pump and suction cups
- 21.5″ Touchscreen
- Monoblock structure
- Aluminum table
- Doors interlock
- Interactive LED system
- Automatic lubrication system
- Software (DDX Easystone Basic Level)
Options
- Tool kit
Technical Data

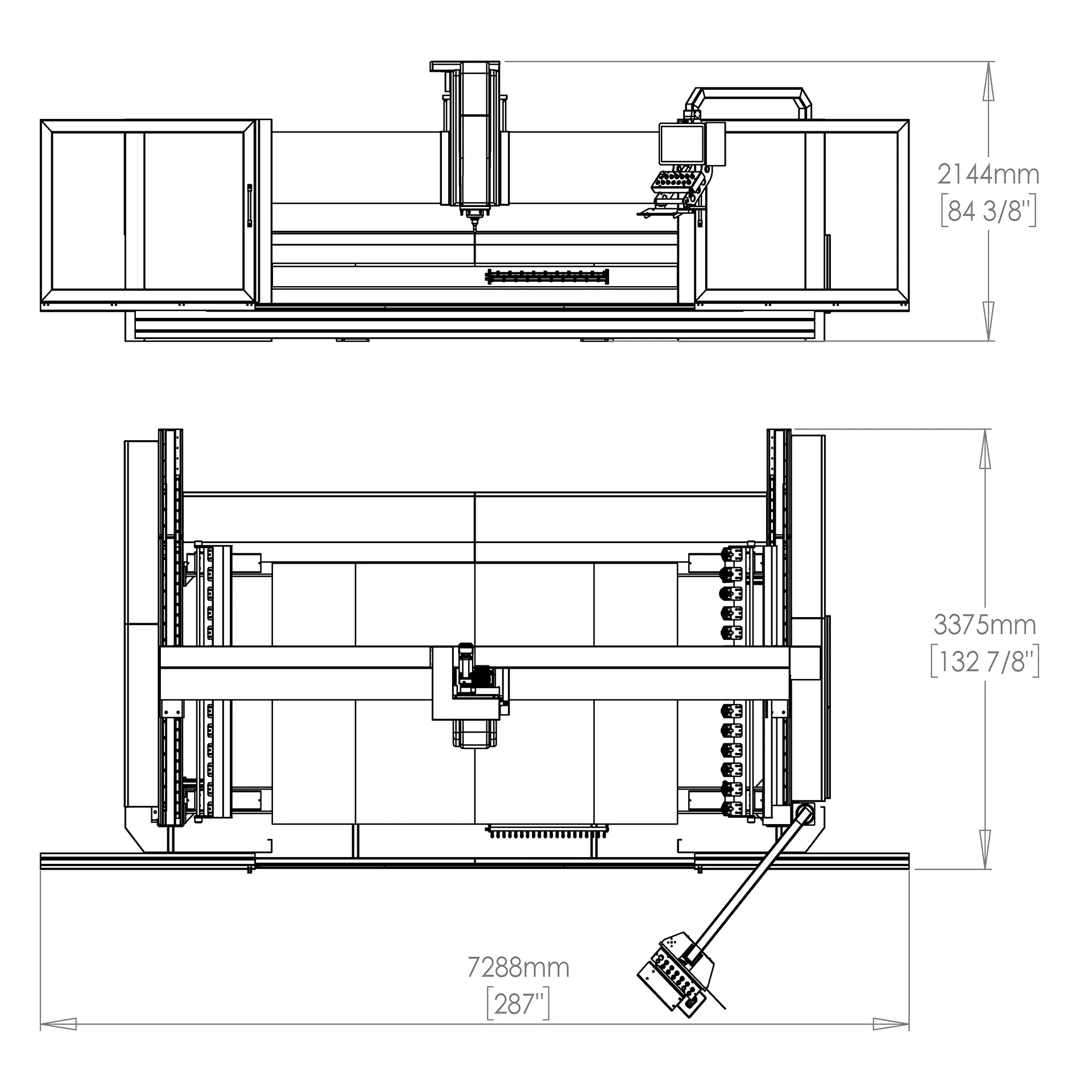

Approximate Dimensions
24′ x 11′ x 8′
Approximate Weight
14,109 lbs
X Axis Travel
161.42″
Y Axis Travel
82.68″
Z Axis Travel
11.81″
