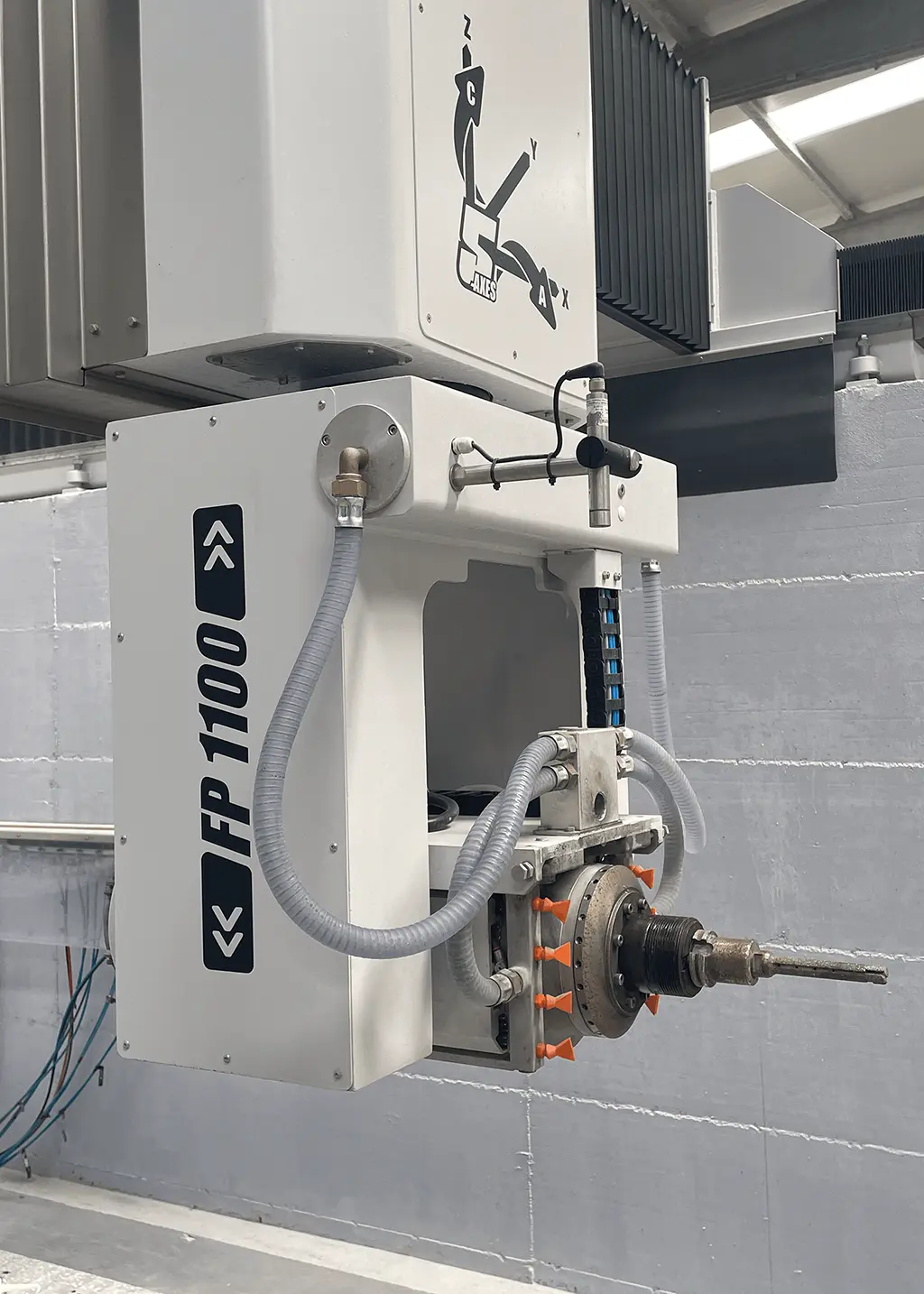

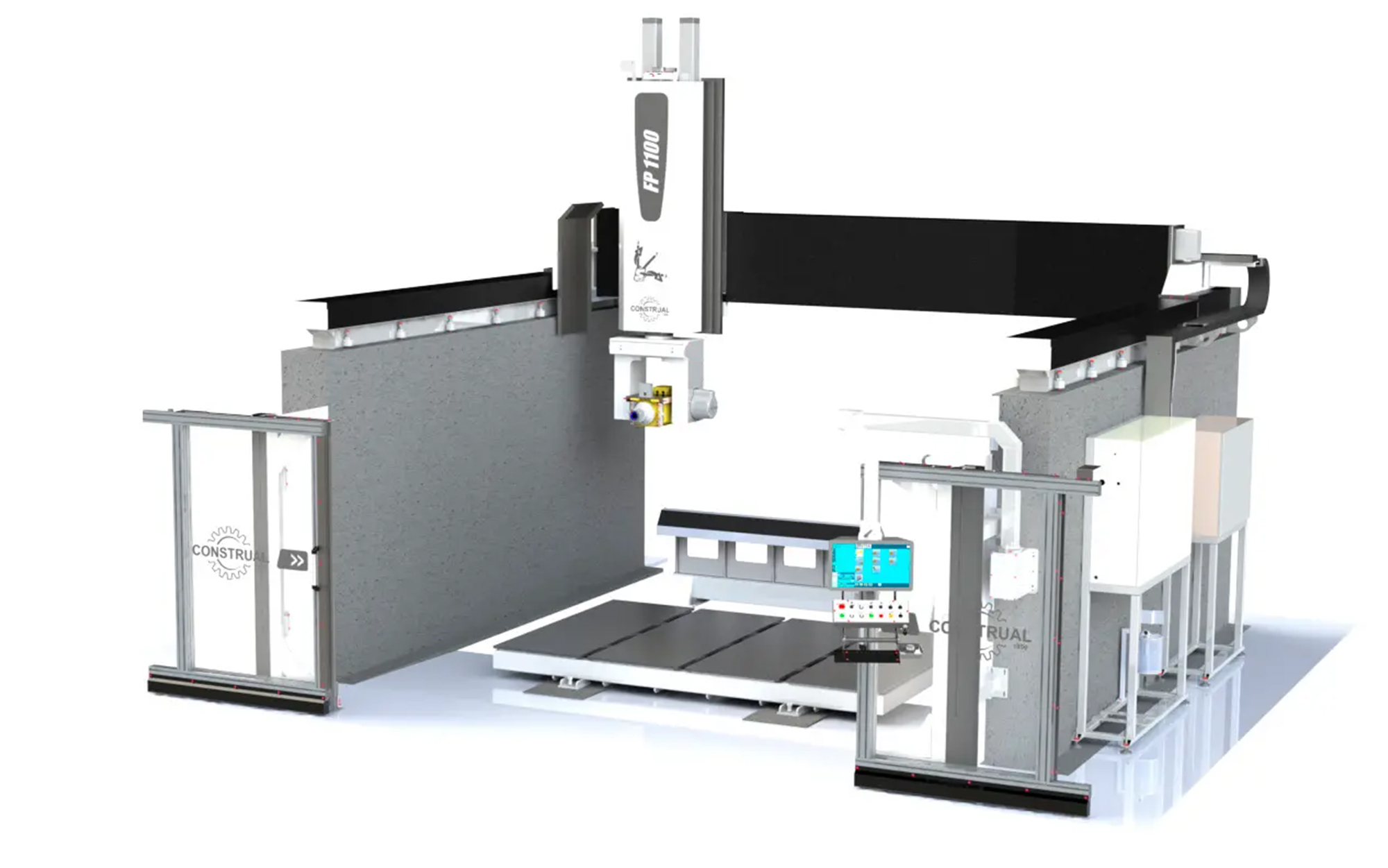

Construal FP 1100
Bridge Saw & Milling Machine
General Information
CNC Cutting and Milling Machine

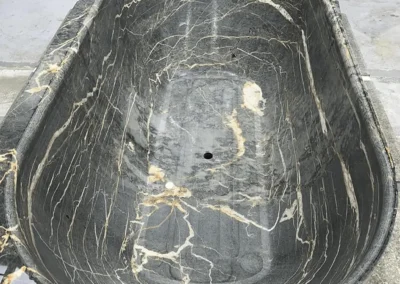

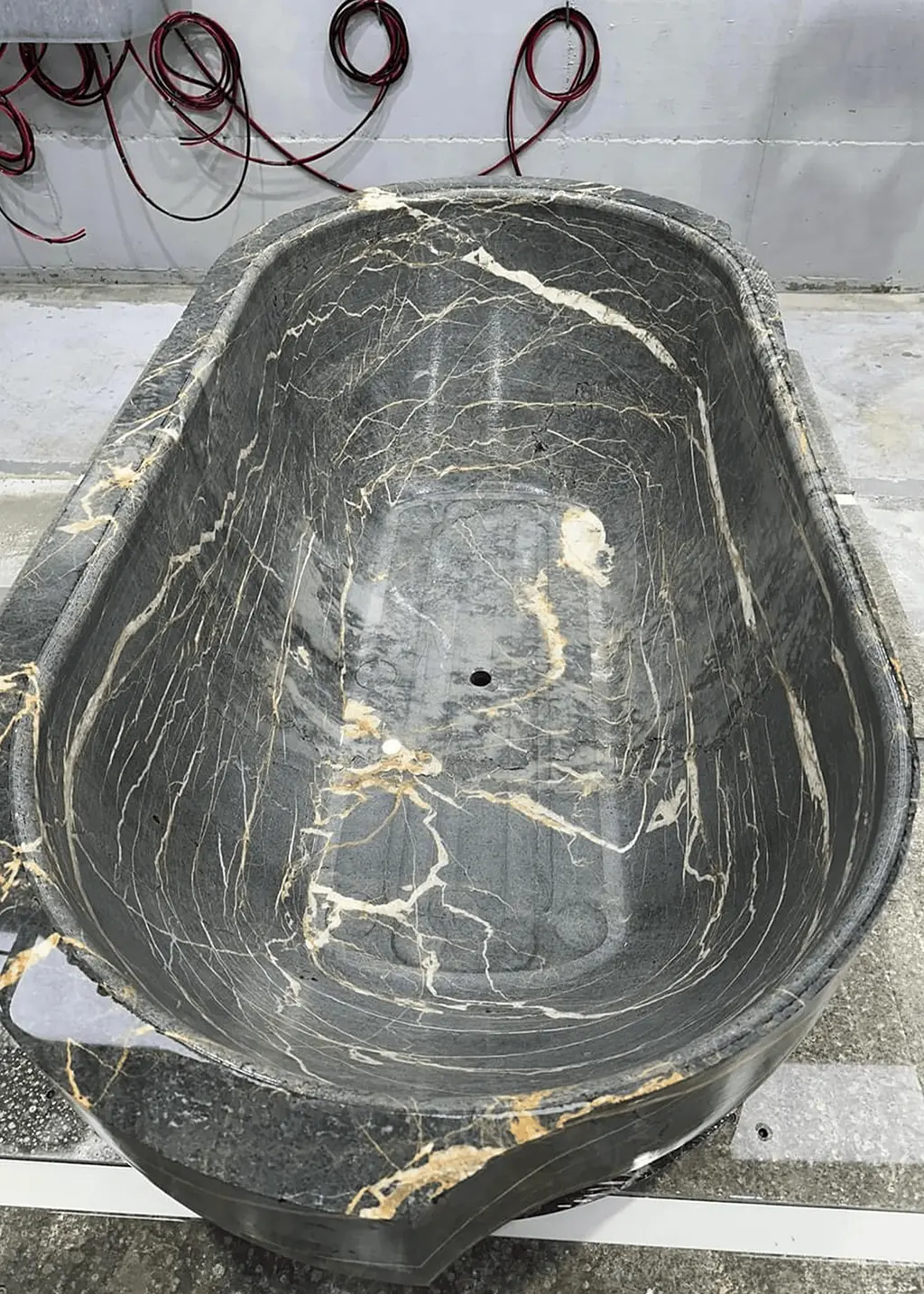

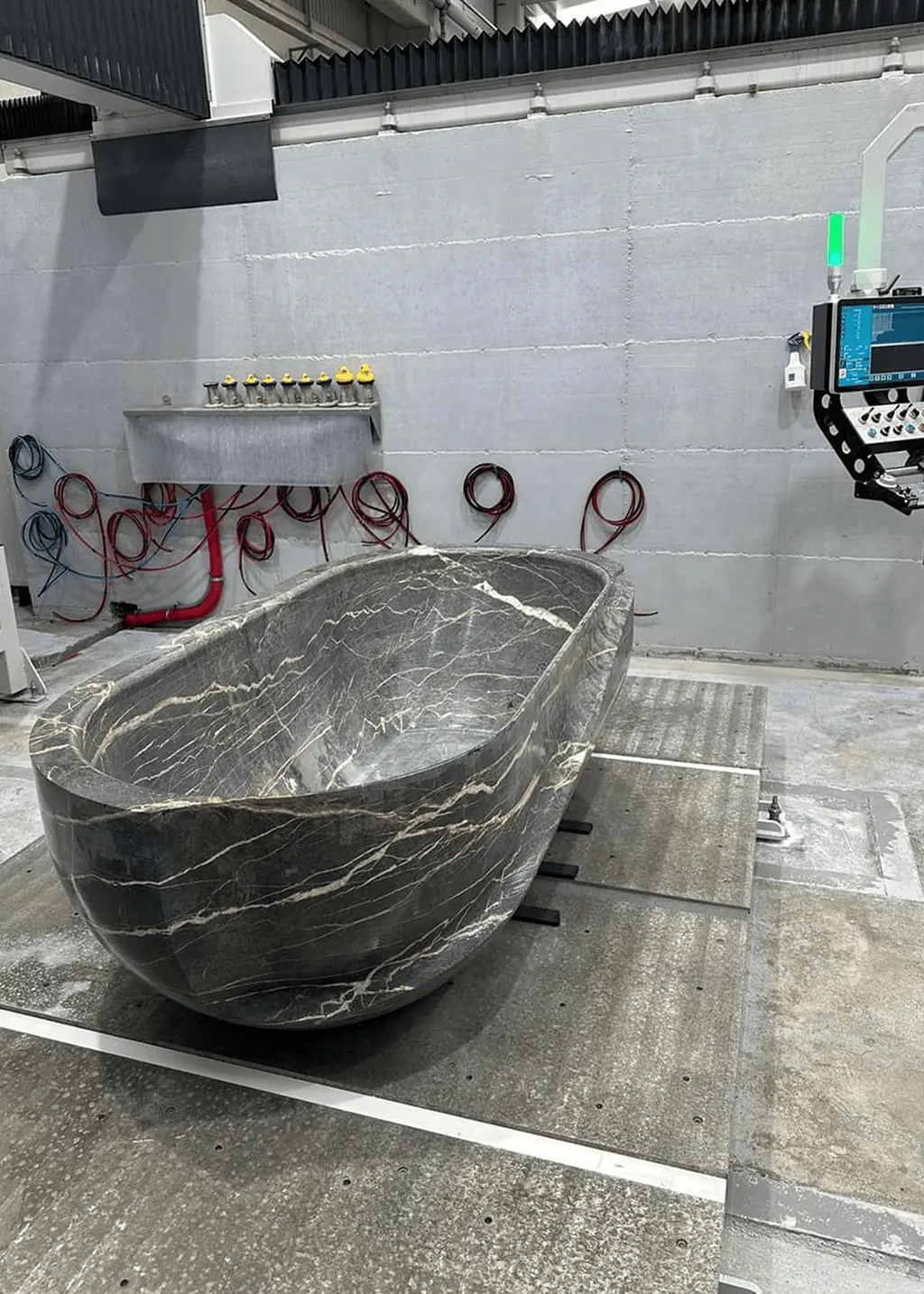

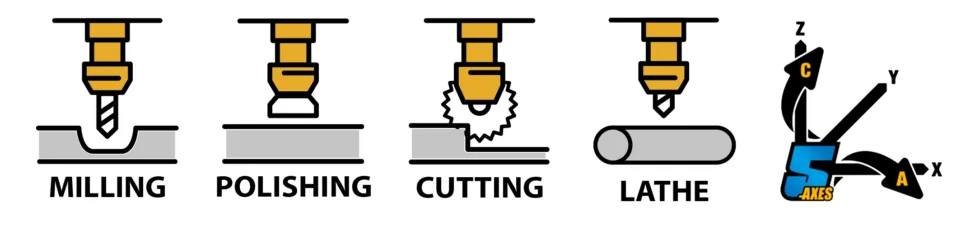

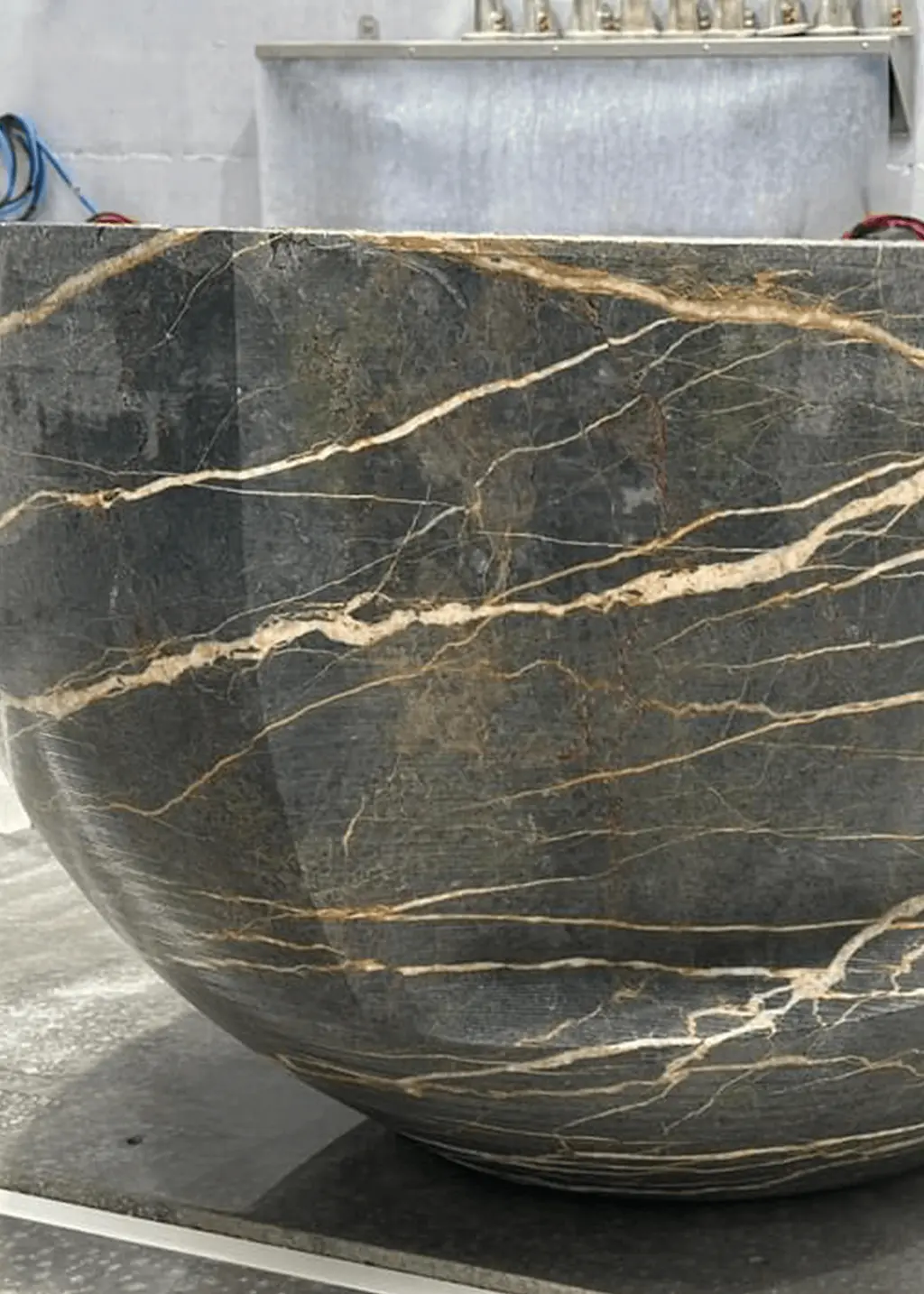

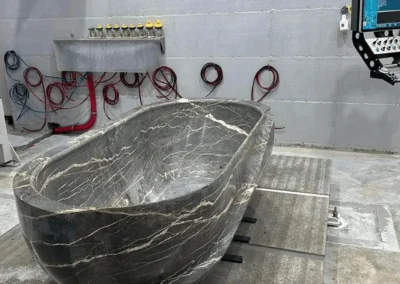

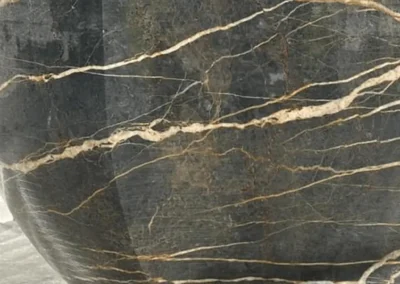

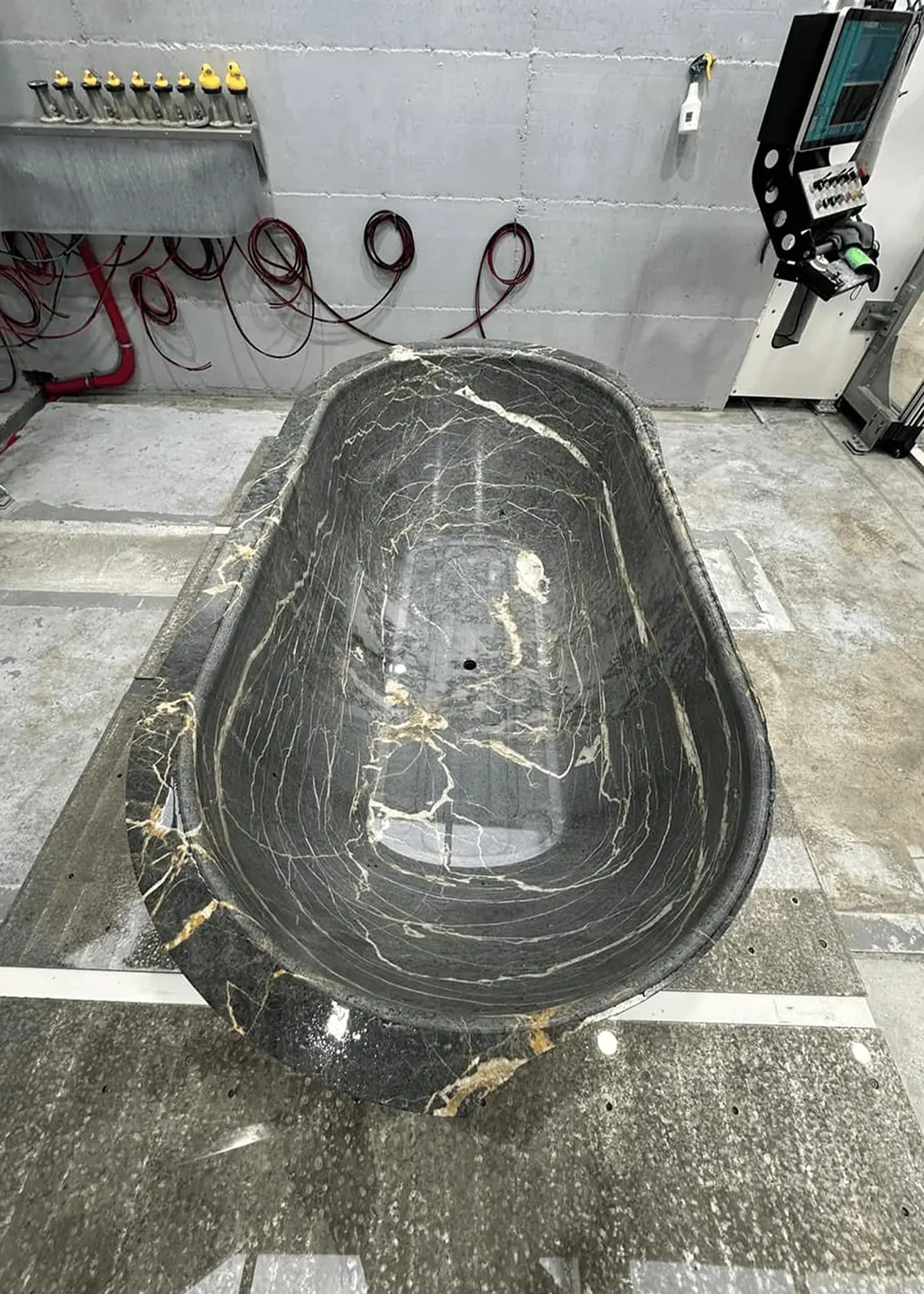

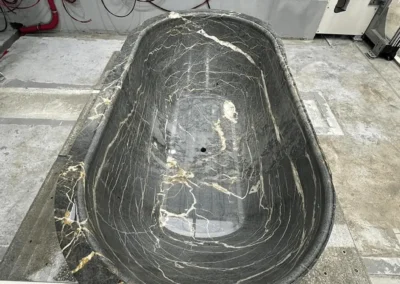

Designed for cutting and milling marble and granite, the FP 1100 is a solid, low-maintenance machine that offers a high level of precision and excellent performance. Controlled by CNC with a Windows-based interface, it allows for easy operation and programming. Intuitive and highly flexible due to its 5-axis configuration, the FP 1100 also features a wide Z-axis range, enabling the production of larger pieces such as bathtubs, among others.
Gallery
Includes
- 20 ISO 50 Tool holders
- 20 position linear tool storage
- Remote control
- Remote diagnostics and technical support
- Vacuum pump and suction cups
- 21.5″ Touchscreen
- Aluminum table
- Doors interlock
- Interactive LED system
- Tool measurement system
- Automatic lubrication system
- Software (DDX Easystone Premium Level)
Options
- Tool kit
Technical Data

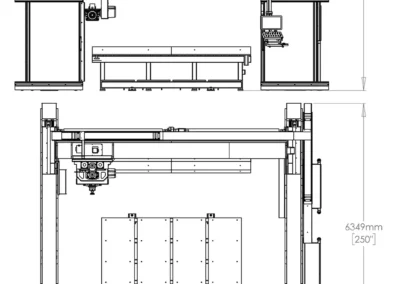

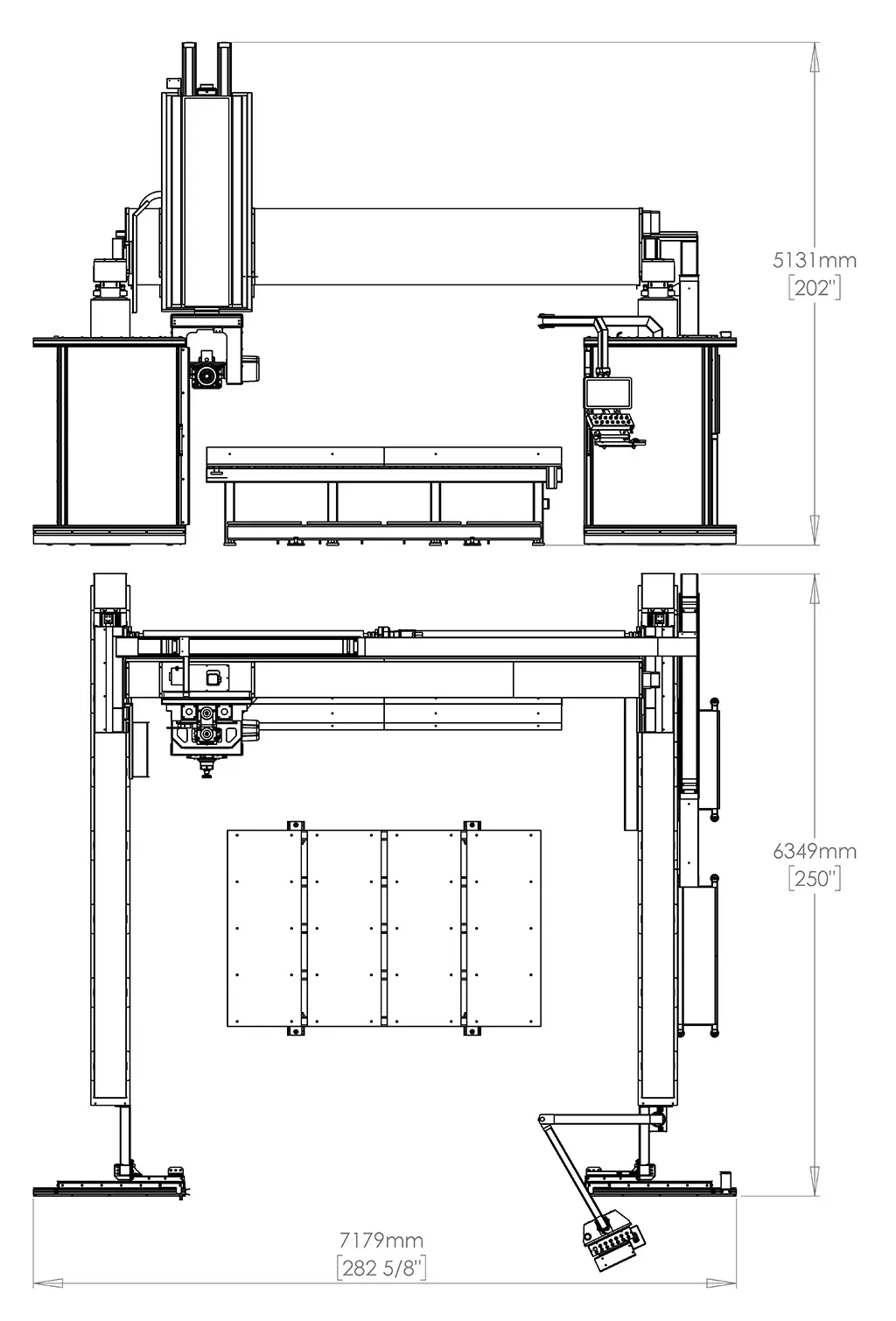

Approximate Dimensions
24′ x 20′ x 17′
Z Axis Travel
43.30″ (63″)
Approximate Weight
15,432 lbs
A Axis Travel
0º – 90º
C Axis Travel
90º – -361º
X Axis Travel
141.73″
Y Axis Travel
137.80″
